HUNT 36 UD Carbon Spoke Wheelset

1295g Depth Width ext Width int size
36 mm 26 mm 19 mm 700c

The ultimate wheelset for mountainous riding. Aero, wide, ultra-lightweight, seriously fast for climbs and descents alike. UD carbon spokes reduce weight and road vibration while increasing lateral responsiveness by 6% and CeramicSpeed (optional) bearings for low rolling resistance.

Tyre size: Optimized for 25 to 28mm tyres; work well with 23mm up to 40mm.

CyclingWeekly 9/10 Review

"...true performance orientated hoops, which are impressive off the mark and superbly responsive on hills. "
Which freehub do I need?
€1,239.20 €1,549.00
20% off
Limited Stock. Available Now.
Stainless Steel Bearings - Limited Stock (€1,239.20)
CeramicSpeed Bearings - Limited Stock (€1,543.20)Items are selected to ship from us in the week stated. Delivery time is 3-6 days*

EU HQ & Warehouse. Prices include all taxes & duties.

Order ETA 2-7 days (if shown in stock).

Our wheels are in high demand, don't miss out. Order now.

H_CARE

FREE LIFETIME CRASH REPLACEMENT

To ensure you're not out of pocket should the worst happen. Learn more.

More details Right

The Purpose _

<h1>Dream Build</h1><i>Hunter Kelly's Affinity</i>

The Purpose _

With up to a 30.16% reduction in lateral flex over equivalent steel spoked wheelsets, the 36 UD Carbon Spoke wheels have been engineered to provide you a significant increase in stiffness as well an impressively low sub 1300g weight.

Using an innovative construction method, the 36 UD Carbon Spoke wheelset offers carbon spokes that are held purely mechanically, with no bonding required. We call this TaperLock, and it allows for carbon spokes that can be trued and maintained just like a normal steel spoke. Plus the TaperLock UD Carbon spokes are incredibly strong achieving over 450kgf (kilograms force per spoke) maximum tensile strength, this compares to leading steel spokes wich only reach 300 kgf. The innovative filament wound rims feature spoke area reinforcement, which creates strength where you need it and saves you vital grams everywhere else.

KEY FEATURES_

<h1>Tyres</h1><i>At HUNT, we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow our customers the same option. Of course, all of our tubeless-ready wheels are designed to work perfectly with clincher tyres and inner tubes too.</i>

CeramicSpeed Bearings

The leaders in low friction bearings CeramicSpeed have again partnered with us on the hubs for the 36 UD Carbon Spoke Wheels so you know your rolling resistance is at its lowest. A standard EZO bearing option is also available.

<h1>Rim Surface</h1><i>High TG resin provides extremely reliable braking and durability for longer descents. We lab test all our rims to very high braking temp (200 C) to push their limits. The high temp resins used for our Griptec Braking surfaces and rims are designed and perform to extremely high levels of braking heat build-up. We also ride test our rim brake wheels in the Alps to ensure the wheels are put through their paces on long, steep and fast descents.</i>

Rims

Adaptive filament wound rim structure. Smart spoke hole reinforcement. Toray T700/T800 carbon-fibre. Griptec friction brake-track with 3K reinforcement for excellent braking and durability.

<h1>Hubs</h1><i>Carbon spoke optimised TaperLock SPRINT hubs add strength and enhance power transfer meaning all your force pushes you forwards. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps add extra stiffness.</i>

Hubs

Carbon Spoke optimised TaperLock SPRINT hubs, 15mm diameter 7075-T6 axle. Circular dropout interface steps for added stiffness. 3x treble-tooth pawl engagement for instant acceleration. Engagement angle of just 7.5°. Steel spline insert to protect the cassette body.

<h1>Spokes</h1><i>Incredibly strong (achieving over 450kgf per spoke) TaperLock UD carbon spokes offering 30% increase in stiffness against steel ones. Only 2.7g per spoke. Due to the TaperLock technology, these spokes can be trued easily using a spoke key from within the rim bed.</i>

UD Carbon Spokes

Ultra-high strength TaperLock UD carbon spokes, offering 30% increase in stiffness against the 36 Carbon Wide Aero.

TECHNOLOGY _

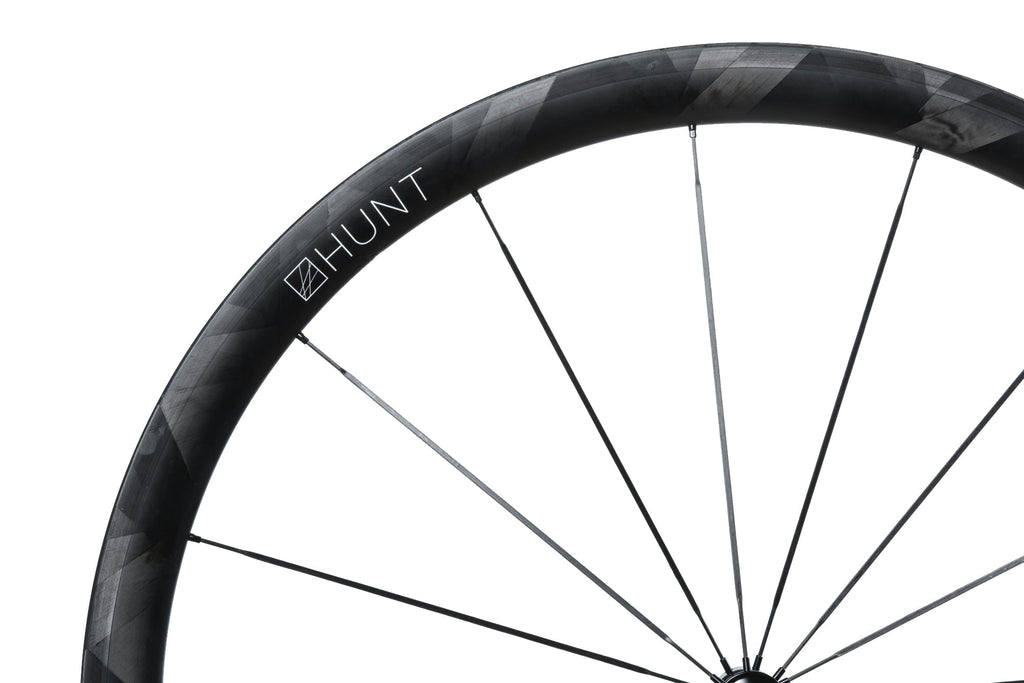

Filament Wound Rims with Spoke Area Reinforcement

The rims are laid up by an adaptive filament winding process, which varies the layup thickness and orientation across the rim. The layup pattern places fibres aligned in a series of increasing angles radiating from the spoke hole up to the tyre bed. This technology optimises the transmission of force from the spoke to the rest of the rim, and provides additional material to create high strength at the spoke area while minimising unnecessary weight between the spokes. Wide rims with a U-profile provide great handling and reduce drag across multiple wind yaw-angles. Of course, they are also tubeless-ready.

Full Specs _

Rims
Adaptive filament wound rims, allowing us to engineer strength into the high stress spoke areas where it is most needed, and allow for lightness where it isn't. Toray T700/T800 unidirectional and 3K weave carbon-fibre with 3K weave bed and spoke areas. 26mm outer and 19mm inner width. 36mm depth, with wide rounded aero section. Hooked Griptec brake-track. Please note: We are not able to control other brands brake pad compounds and we cannot test every possible brake pad so please use only our HUNT Brakco Griptec carbon specific rim brake pads with these wheels. Two pairs of pads are included with your wheels and further sets can be ordered from here. We chose the Brakco Griptec pads because they outperform a lot of the market leaders’ best selling compounds in both dry and wet laboratory conditions. Raw filament wound surface finished with matt white contrasting graphics. HUNT Black Shield tubeless rim tape fitted.
  • Adaptive filament wound rims, allowing us to engineer strength into the high stress spoke areas where it is most needed, and allow for lightness where it isn't.
  • Toray T700/T800 unidirectional and 3K weave carbon-fibre with 3K weave bed and spoke areas.
  • 26mm outer and 19mm inner width.
  • 36mm depth, with wide rounded aero section.
  • Hooked
  • Griptec brake-track. Please note: We are not able to control other brands brake pad compounds and we cannot test every possible brake pad so please use only our HUNT Brakco Griptec carbon specific rim brake pads with these wheels. Two pairs of pads are included with your wheels and further sets can be ordered from here. We chose the Brakco Griptec pads because they outperform a lot of the market leaders’ best selling compounds in both dry and wet laboratory conditions.
  • Raw filament wound surface finished with matt white contrasting graphics.
  • HUNT Black Shield tubeless rim tape fitted.
Spokes
UD carbon fibre spokes with incredibly high strength, stiffness and weighing only 2.7g per spoke Front: 16 spokes laced radially - aero profile Rear: 21 spokes laced 2 cross drive-side and radially non-drive side Bladed
  • UD carbon fibre spokes with incredibly high strength, stiffness and weighing only 2.7g per spoke

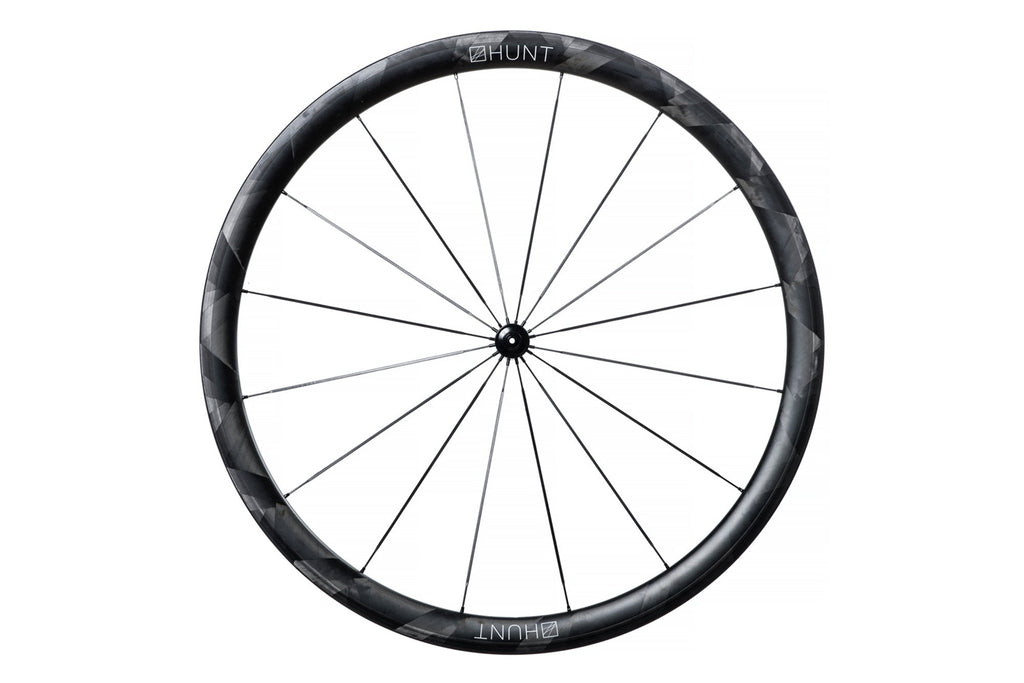

  • Front: 16 spokes laced radially - aero profile
  • Rear: 21 spokes laced 2 cross drive-side and radially non-drive side
  • Bladed
Nipples
TaperLock nipples secure spoke head to the hub Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing Internal nipple for truing Black anodized finish
  • TaperLock nipples secure spoke head to the hub
  • Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing
  • Internal nipple for truing
  • Black anodized finish
Front Hub
TaperLock spoke interface Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Circular machined dropout interface steps for added stiffness. Polished anodized black finish with laser graphics.
  • TaperLock spoke interface
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Circular machined dropout interface steps for added stiffness.
  • Polished anodized black finish with laser graphics.
Rear Hub
TaperLock spoke interface Circular machined dropout interface steps for added stiffness. 3x treble-tooth pawl engagement for instant acceleration - 7.5 degrees engagement. 7075-T6 heat-treated aluminium alloy freehub body. Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Polished anodized black finish with laser graphics. Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. All freehub standards accounted for
  • TaperLock spoke interface
  • Circular machined dropout interface steps for added stiffness.
  • 3x treble-tooth pawl engagement for instant acceleration - 7.5 degrees engagement.
  • 7075-T6 heat-treated aluminium alloy freehub body.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Polished anodized black finish with laser graphics.
  • Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • All freehub standards accounted for
Bearings
Industry leading CeramicSpeed hybrid ceramic bearings (or standard EZO steel bearings) CeramicSpeed bearings last 3 to 5 times longer than other ceramic bearings on the market and 10 times more than standard steel bearings. CeramicSpeed bearing balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. 15% harder, take 99% higher loads and are more than 100% smoother than other ceramic balls typically seen in the market. The smoothness and the hardness of the CeramicSpeed Balls are unique. 4 year warranty (When registered with CeramicSpeed)
  • Industry leading CeramicSpeed hybrid ceramic bearings (or standard EZO steel bearings)
  • CeramicSpeed bearings last 3 to 5 times longer than other ceramic bearings on the market and 10 times more than standard steel bearings.
  • CeramicSpeed bearing balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. 15% harder, take 99% higher loads and are more than 100% smoother than other ceramic balls typically seen in the market. The smoothness and the hardness of the CeramicSpeed Balls are unique.
  • 4 year warranty (When registered with CeramicSpeed)
Tyres Info
HUNT recommends a 28mm tyre for best performance, tyre widths between 22mm and 47mm are also safe to use.   Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.  Tubeless-ready for lower weight and rolling resistance.  You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • HUNT recommends a 28mm tyre for best performance, tyre widths between 22mm and 47mm are also safe to use.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle Sizes
HUNT Super-light Race Season design, only 33g front and 37g rear 7075-T6 heat-treated alloy lever, head and nut. Brass cam plate actuation. 1000kgf tested high-strength cro-moly spindles. Corrosion resistant stainless steel springs. Polished anodized black finish with laser graphics.
  • HUNT Super-light Race Season design, only 33g front and 37g rear
  • 7075-T6 heat-treated alloy lever, head and nut.
  • Brass cam plate actuation.
  • 1000kgf tested high-strength cro-moly spindles.
  • Corrosion resistant stainless steel springs.
  • Polished anodized black finish with laser graphics.

HIGH SPECIFICATION COMPONENTS _
Rims

Using an adaptive filament winding process, which varies thickness and orientation across the rim, these rims achieve a very light weight and excellent transmission of force from the spoke to the rest of the rim. The process also provides additional material to create high strength at the spoke areas while minimising unnecessary weight between the spokes. They are wide at 26mm (19mm int.) which creates a great tyre profile, resulting in excellent grip and lower rolling resistance. High TG resin provides extremely reliable braking and durability for longer descents. We lab test all our rims to very high braking temp (200 C) to push their limits. The high temp resins used for our Griptec Braking surfaces and rims are designed and perform to extremely high levels of braking heat build-up. We also ride test our rim brake wheels in the Alps to ensure the wheels are put through their paces on long, steep and fast descents.
CeramicSpeed Bearings

The 36 UD Carbon Spoke will come fully equipped with CeramicSpeed's industry-leading hybrid ceramic bearings, even in the freehub body. All CeramicSpeed Balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. The quality of the balls is what determines the performance and lifetime of a bearing. The CeramicSpeed Balls feature unparalleled impact strength, smoothness, roundness and brittleness.

<h1>Hubs</h1><i>Carbon spoke optimised TaperLock SPRINT hubs add strength and enhance power transfer meaning all your force pushes you forwards. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps add extra stiffness.</i>
Hubs

Carbon spoke optimised TaperLock SPRINT hubs add strength and enhance power transfer meaning all your force pushes you forwards. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps add extra stiffness.
Freehub Body

Featuring a 3 multi-point pawls with 3 teeth each and a 48 tooth ratchet ring results in an impressively low 7.5 degree engagement angle and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which engage quicker. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.

<h1>Spokes</h1><i>Incredibly strong (achieving over 450kgf per spoke) TaperLock UD carbon spokes offering 30% increase in stiffness against steel ones. Only 2.7g per spoke. Due to the TaperLock technology, these spokes can be trued easily using a spoke key from within the rim bed.</i>
Spokes

Incredibly strong (achieving over 450kgf per spoke) TaperLock UD carbon spokes offering 30% increase in stiffness against steel ones. Only 2.7g per spoke. Due to the TaperLock technology, these spokes can be trued easily using a spoke key from within the rim bed.

<h1>Tyres</h1><i>At HUNT, we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow our customers the same option. Of course, all of our tubeless-ready wheels are designed to work perfectly with clincher tyres and inner tubes too.</i>
Tyres

At HUNT, we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow our customers the same option. Of course, all of our tubeless-ready wheels are designed to work perfectly with clincher tyres and inner tubes too.

REVIEWS _

Bike Magazine and Websites Expert's Views

CyclingWeekly 9/10 Review

"...true performance orientated hoops, which are impressive off the mark and superbly responsive on hills. "

What's in the box _

  • Front wheel and Rear Wheels with HUNT Black Shield tubeless tape fitted
  • Pair quick-releases
  • Griptec brake pads by Brakco
  • Cassette spacer for 8/9/10 speed
  • Quality control card signed by your wheel builder
HUNT Skewers and rim brake pads

WARRANTY_

These wheels come with H_CARE (Free Lifetime Crash Replacement) for the first owners. Read all about it here.

A full 3 years (4 years on CeramicSpeed bearings*) from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.  *Must be registered with CeramicSpeed

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 125 kg (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 105 kgs then an experienced bike mechanic should check the wheel regularly.
