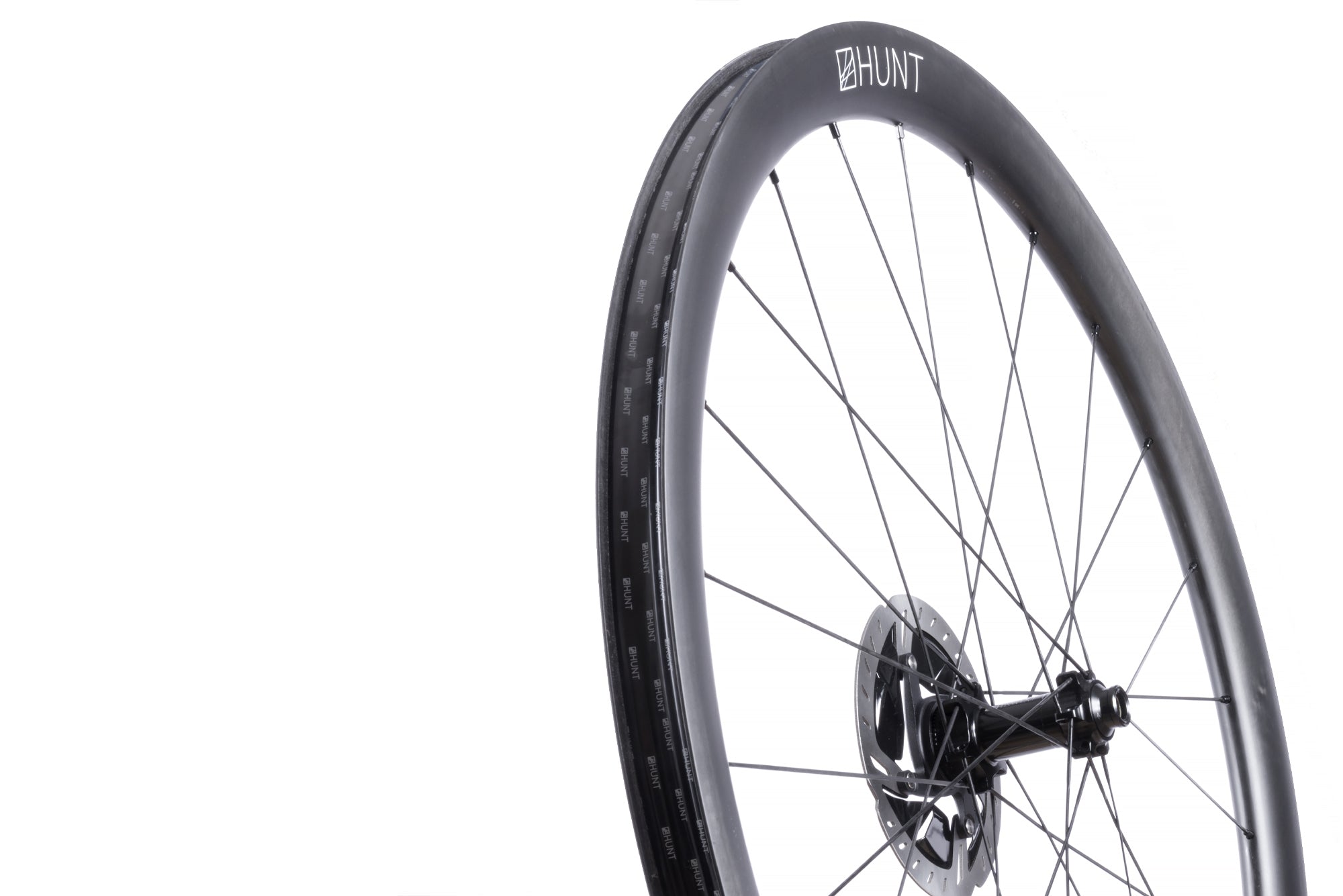

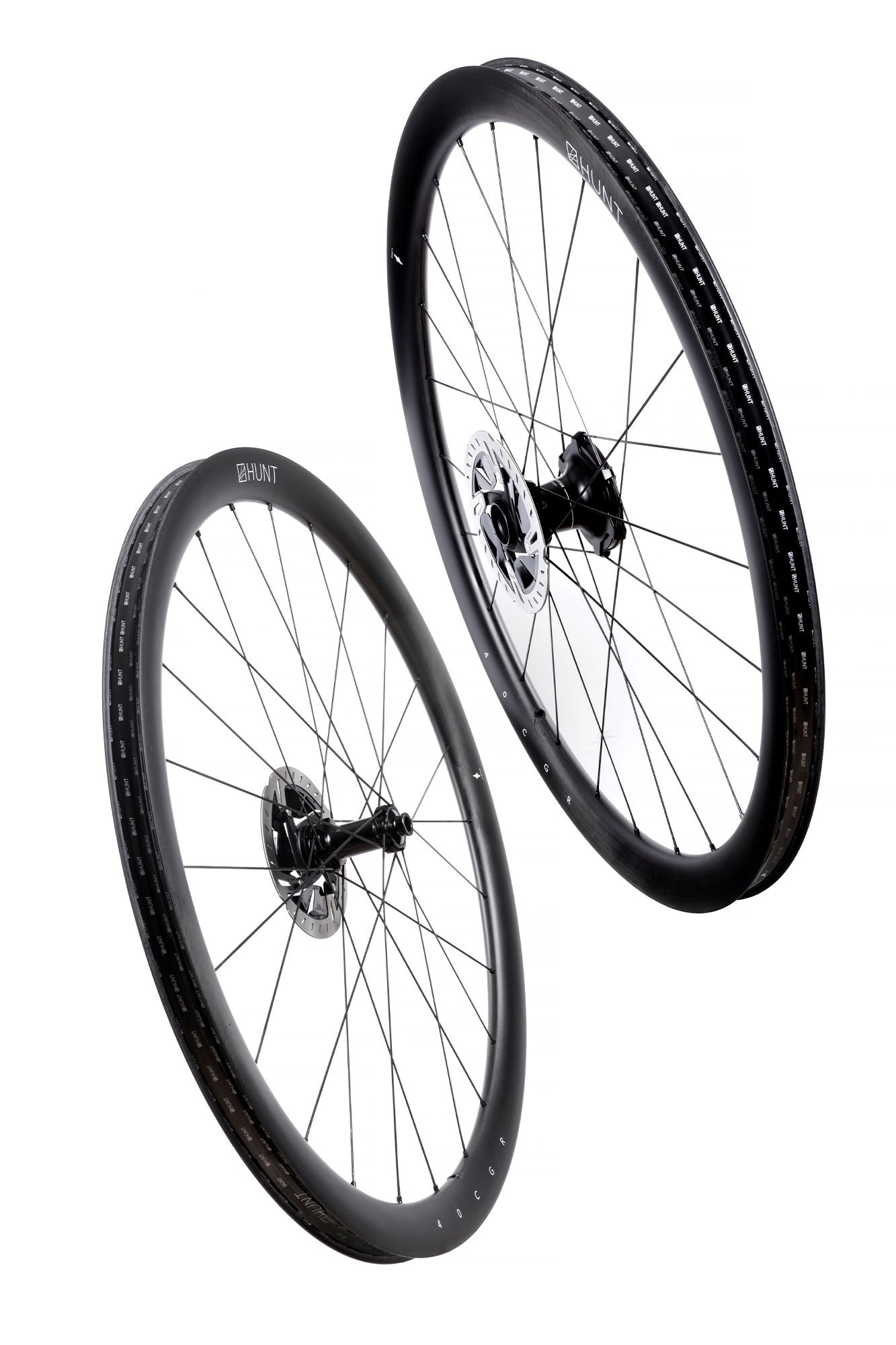

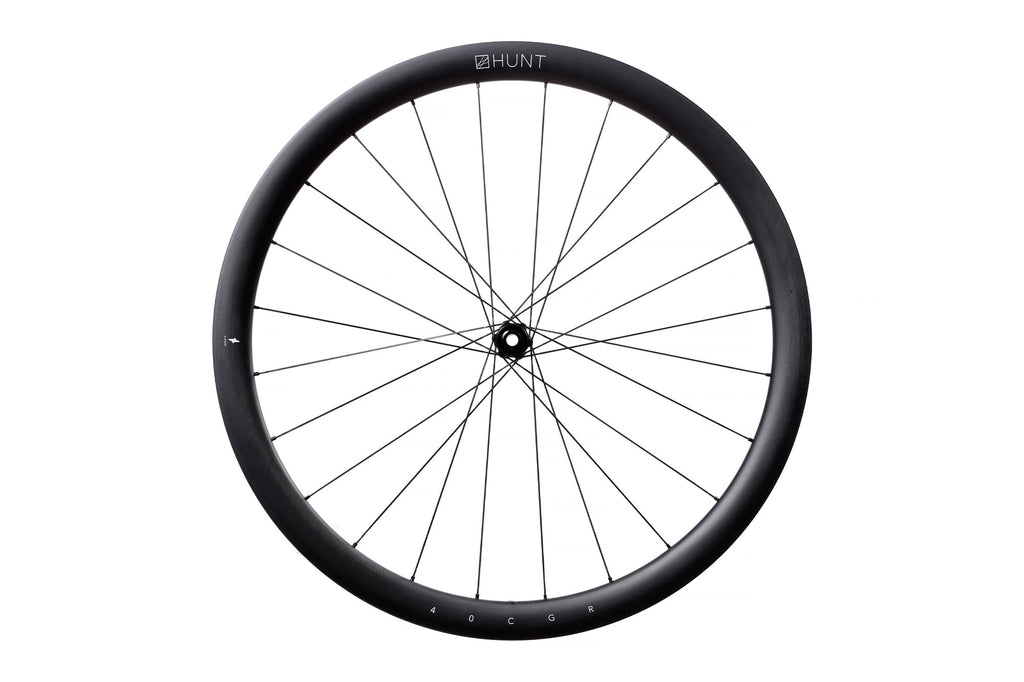

Classified x HUNT 40 Carbon Gravel Race Wheelset

1270g Depth Width ext Width int size
40 mm 30 mm 25 mm 700c

Our race-ready, ultralight hookless 40 Carbon Gravel Race rims and Spring SL front hub paired with the game-changing Classified Powershift rear hubshell.

Tyre size: Optimized for 35 to 45mm tyres; work well with 29mm up to 60mm.

CYCLINGNEWS 5 STAR REVIEW

"If you thought a Classified system was out of reach for your gravel race bike, now you can have all the advantages without a weight or price penalty."

€1,249
Limited Stock. Available Now.Items are selected to ship from us in the week stated. Delivery time is 3-6 days*

We will ask for Axle info after checkout.

All import duties, taxes and handling costs are covered by us.

Order ETA 3-6 days*
Our wheels are in high demand, don't miss out. Order now.

*If shown in stock

The Purpose _

The Purpose _

The HUNT 40 Carbon Gravel Race wheelset was built to meet the needs of the gravel racer and rider. With the integration of a Classified Powershift rear hub shell, we’re able to pack even more industry-leading design to into this versatile and fast, best-selling gravel wheelset. Wide and lightweight 40mm-deep hookless rims offer durability, quick acceleration and aerodynamic efficiency, intended for use with modern width gravel race tyres. With an integrated Powershift rear hub, your riding will benefit from the wide gearing range and functionality of a front derailleur and 2x drivetrain, while enjoying the simplicity and aero benefits of a 1x setup.

NOTE:The Classified Powershift internal system and electronics must be supplied by select Classified dealers. This wheelset does not contain the complete system. The rear wheel is delivered with the Classified hub shell, without the Powershift hub internals. Please contact our Rider Experience team with any questions.

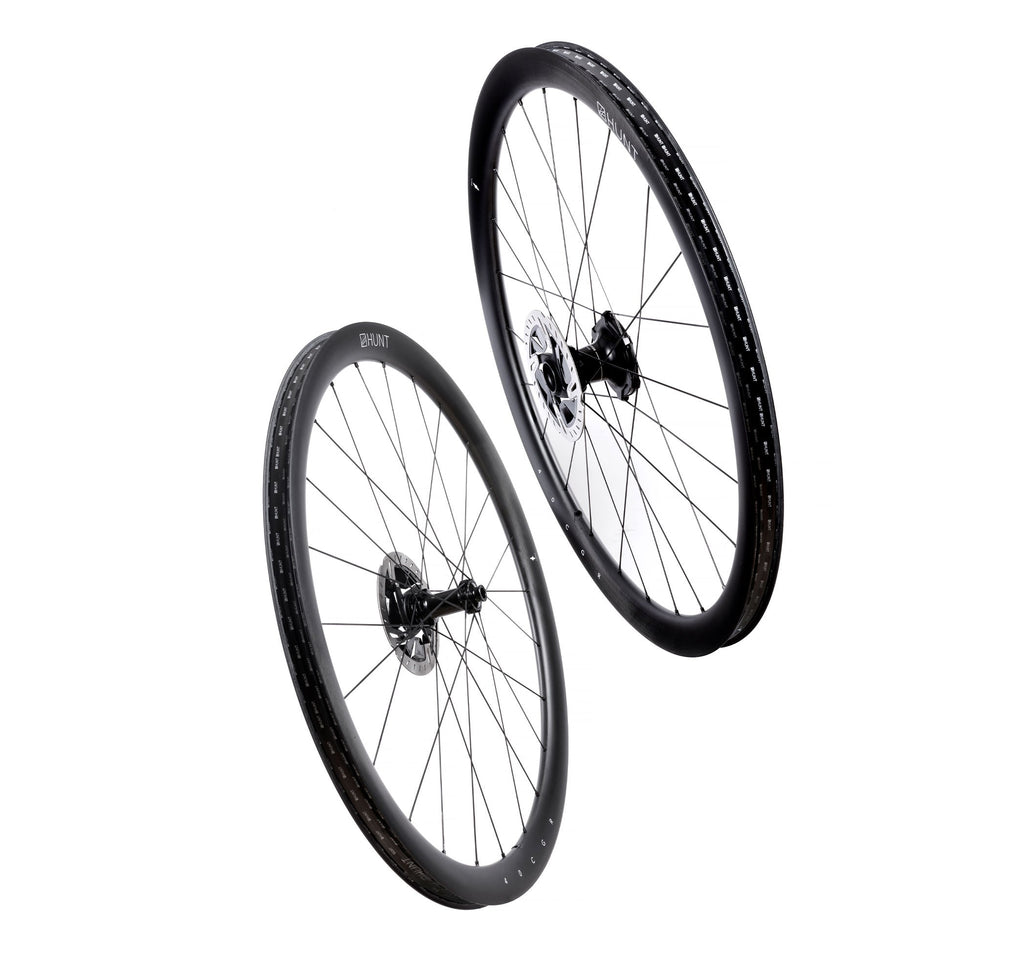

Full Specs _

Rims
Disc-specific hookless/straight-sidewall design.30mm external and 25mm internal.H_LOCK bead-seat up-kicks, for easy and secure tubeless installation.Matt black base finished with matt white contrasting graphics.
  • Disc-specific hookless/straight-sidewall design.
  • 30mm external and 25mm internal.
  • H_LOCK bead-seat up-kicks, for easy and secure tubeless installation.
  • Matt black base finished with matt white contrasting graphics.
Spokes
24 front and 24 rear, laced 2-cross.Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.Straight-pull, for excellent torsional strength and direct power transfer.Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik SwedenPatented Pillar Spoke Re-enforcement (butted again just before the spoke head, providing more durability in high stress area).Black stainless finish.
  • 24 front and 24 rear, laced 2-cross.
  • Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
  • Straight-pull, for excellent torsional strength and direct power transfer.
  • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
  • Patented Pillar Spoke Re-enforcement (butted again just before the spoke head, providing more durability in high stress area).
  • Black stainless finish.
Nipples
Brass for anti-corrosion resistance.Square body for external adjustment and hex head for easy internal adjustment/tensioning.12mm length.14 gauge.Black finish.
  • Brass for anti-corrosion resistance.
  • Square body for external adjustment and hex head for easy internal adjustment/tensioning.
  • 12mm length.
  • 14 gauge.
  • Black finish.
Bearings
High-grade Japanese EZO bearings.Incredibly fast rolling.
  • High-grade Japanese EZO bearings.
  • Incredibly fast rolling.

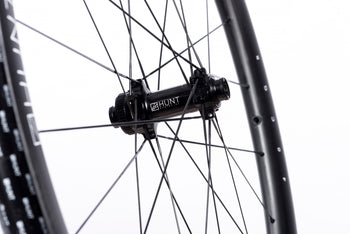

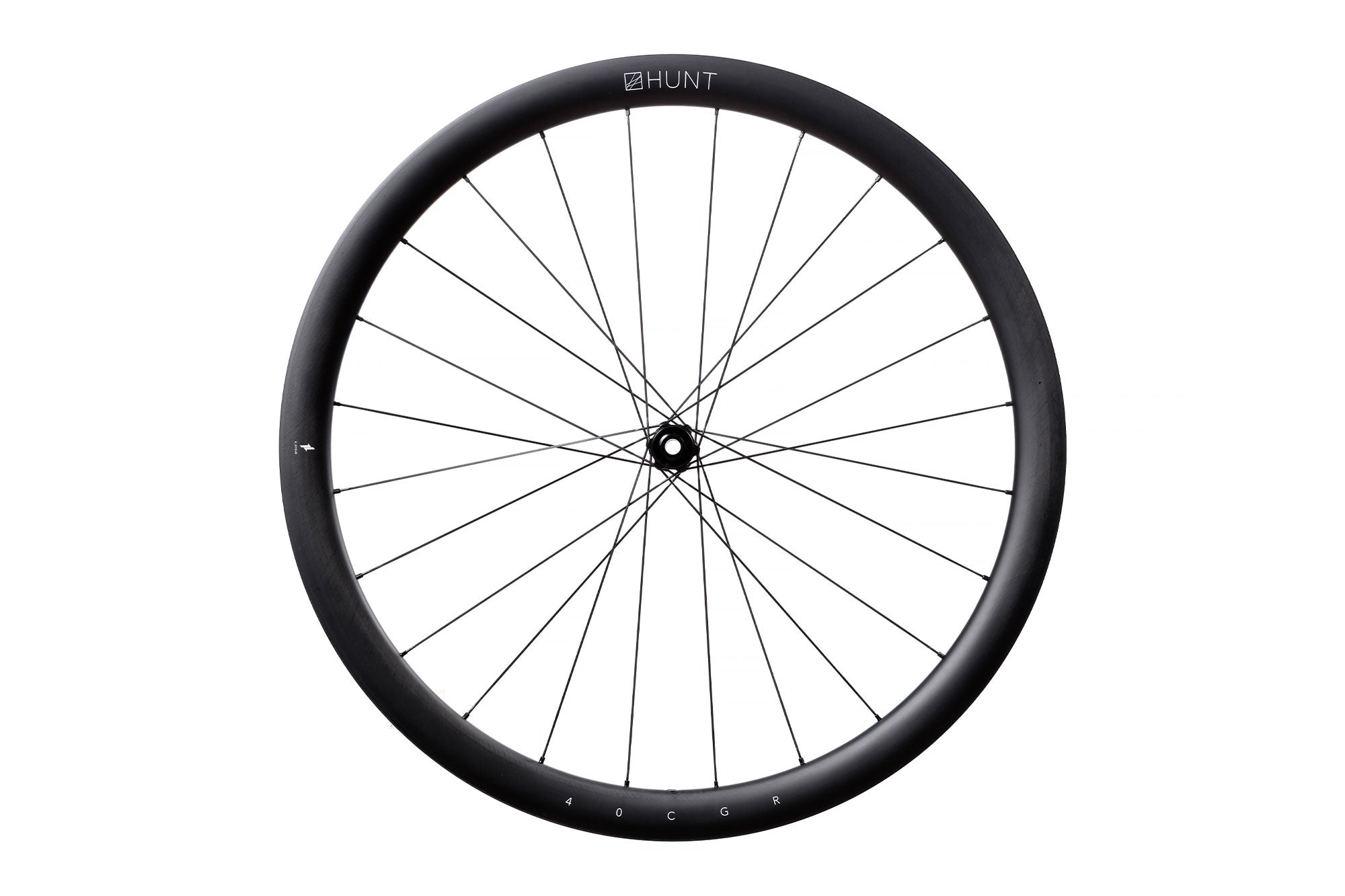

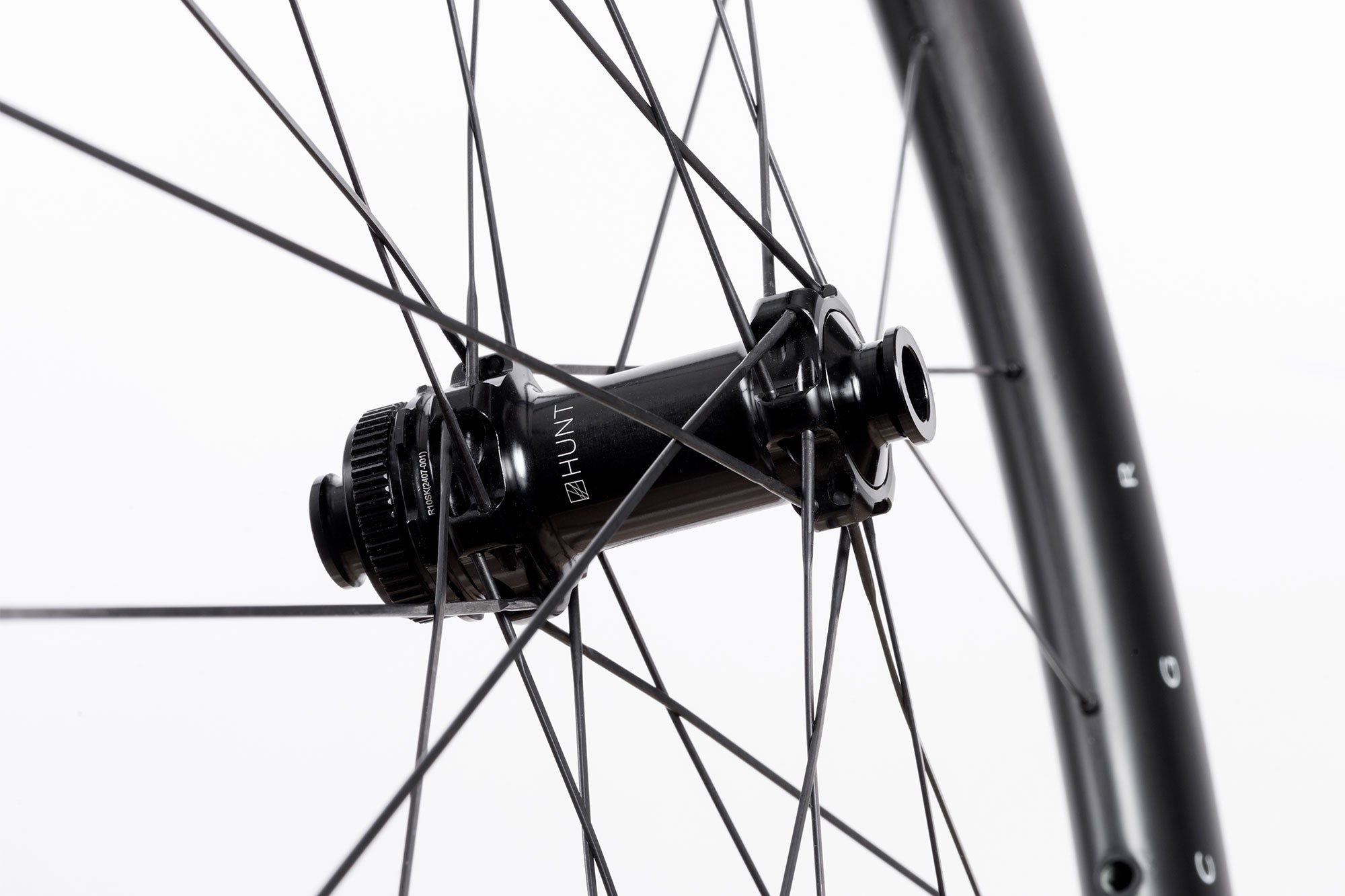

Front Hub
We fit the axles you need, just complete the simple form shown after checkout:All existing road/CX disc front axle standards are available including:Quick Release (Quick release skewers included)12mm Bolt ThruAll axle adapters are also available separately.Forged and CNC’d 6066-T6 heat treated aluminum alloy body.6066-T6 aluminum alloy axles.Center-lock disc mount. If you require a 6 bolt adapter you can purchase separately here.HUNT SPRINT SL Disc straight-pull super-light alloy.Polished anodized black finish with laser graphics.

We fit the axles you need, just complete the simple form shown after checkout:

All existing road/CX disc front axle standards are available including:

  • Quick Release (Quick release skewers included)
  • 12mm Bolt Thru

All axle adapters are also available separately.

Forged and CNC’d 6066-T6 heat treated aluminum alloy body.

6066-T6 aluminum alloy axles.

  • Center-lock disc mount. If you require a 6 bolt adapter you can purchase separately here.
  • HUNT SPRINT SL Disc straight-pull super-light alloy.
  • Polished anodized black finish with laser graphics.

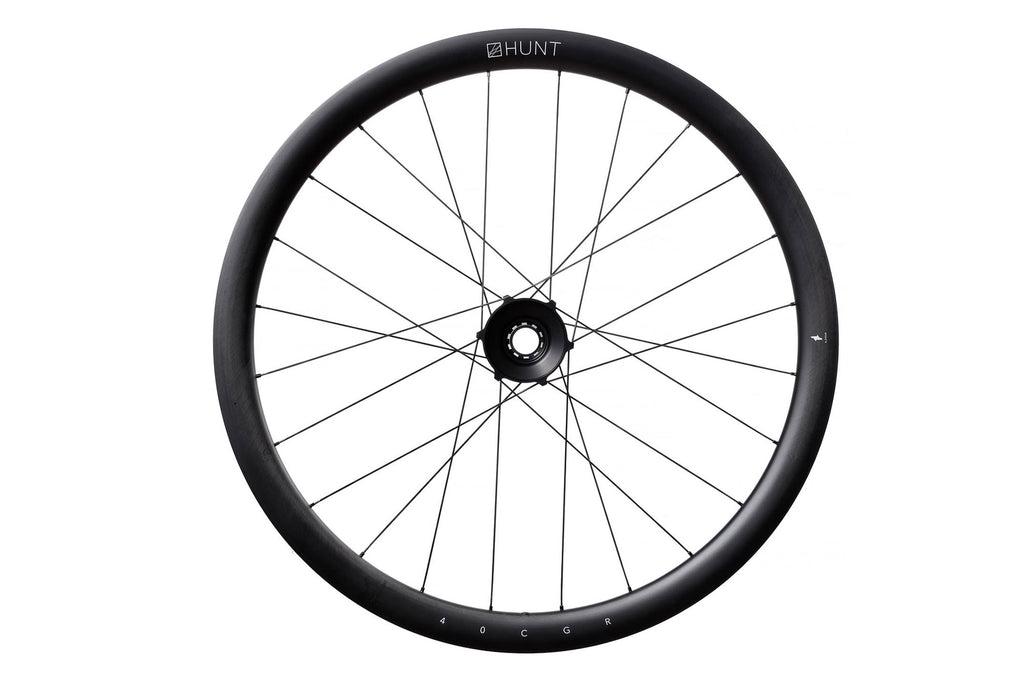

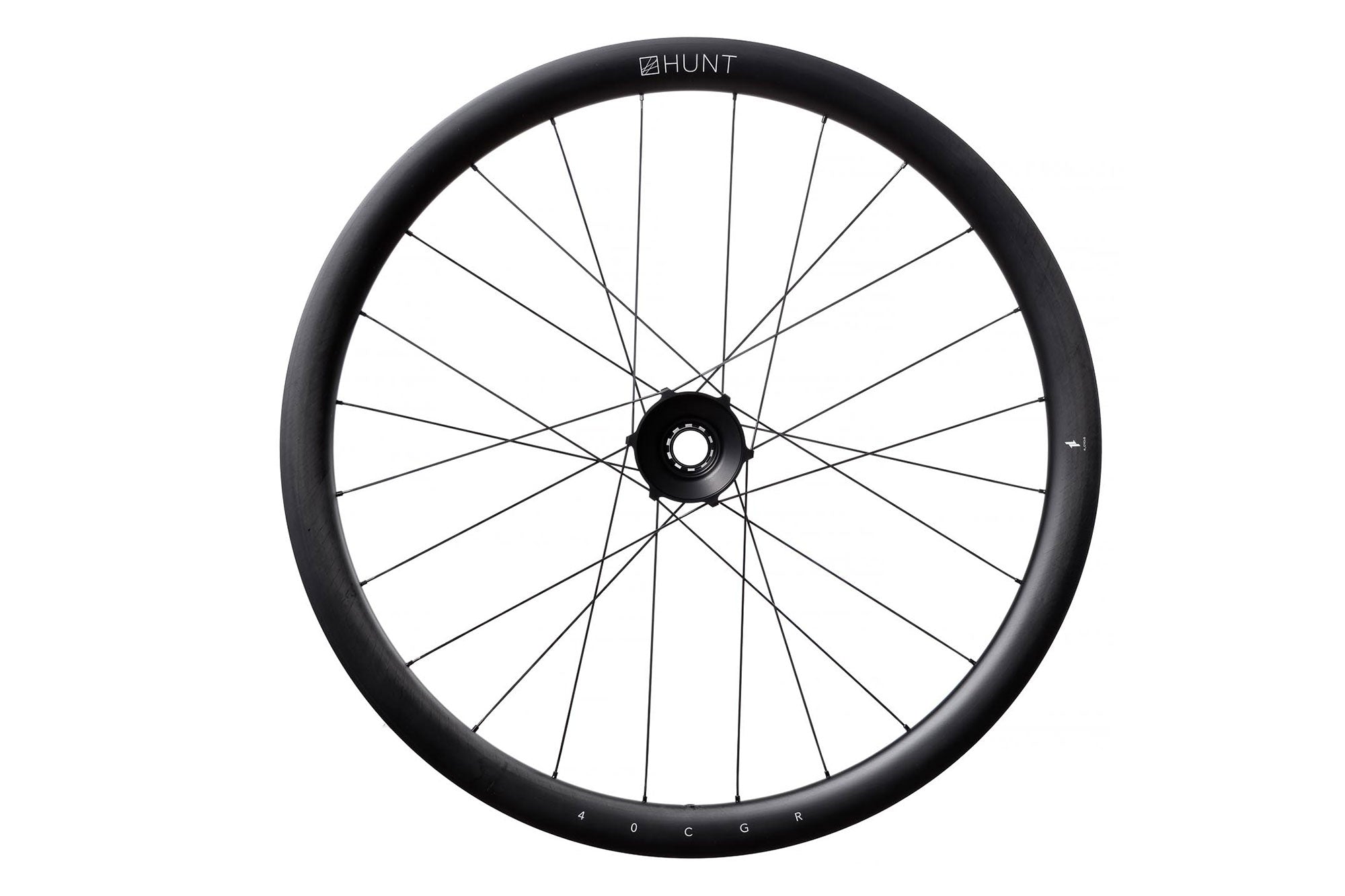

Rear Hub
Classified Powershift Rear Hub Shell Only. Rear 12x142 Bolt Thru Only (Not included)
  • Classified Powershift Rear Hub Shell Only. Rear 12x142 Bolt Thru Only (Not included)

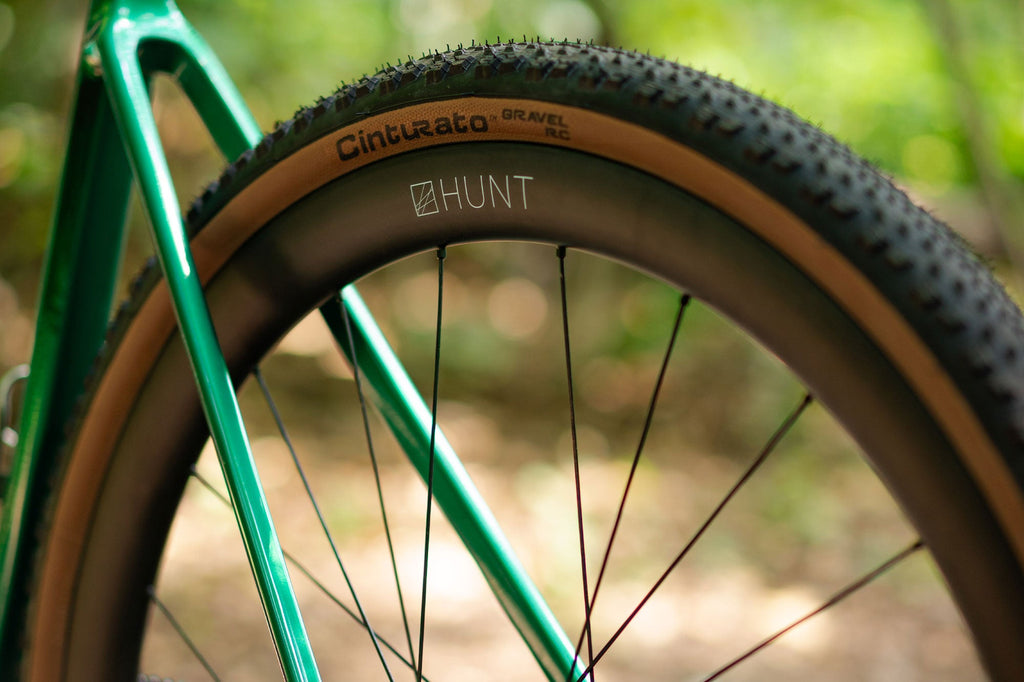

Tyres Info
HUNT recommends a 40mm tyre for best performance, tyre widths between 35mm and 64mm are also safe to use.  Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here. Tubeless-ready for lower weight and rolling resistance. Only use tyres marked as compatible with hookless (TSS) rims. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • HUNT recommends a 40mm tyre for best performance, tyre widths between 35mm and 64mm are also safe to use.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • Only use tyres marked as compatible with hookless (TSS) rims.
  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle Sizes
These wheels are available with the following disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mmRear: 12x142mm Thru-Axle OnlyIf you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.

These wheels are available with the following disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:

  • Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle Only

If you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.

HIGH SPECIFICATION COMPONENTS _

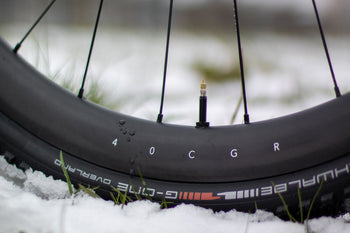

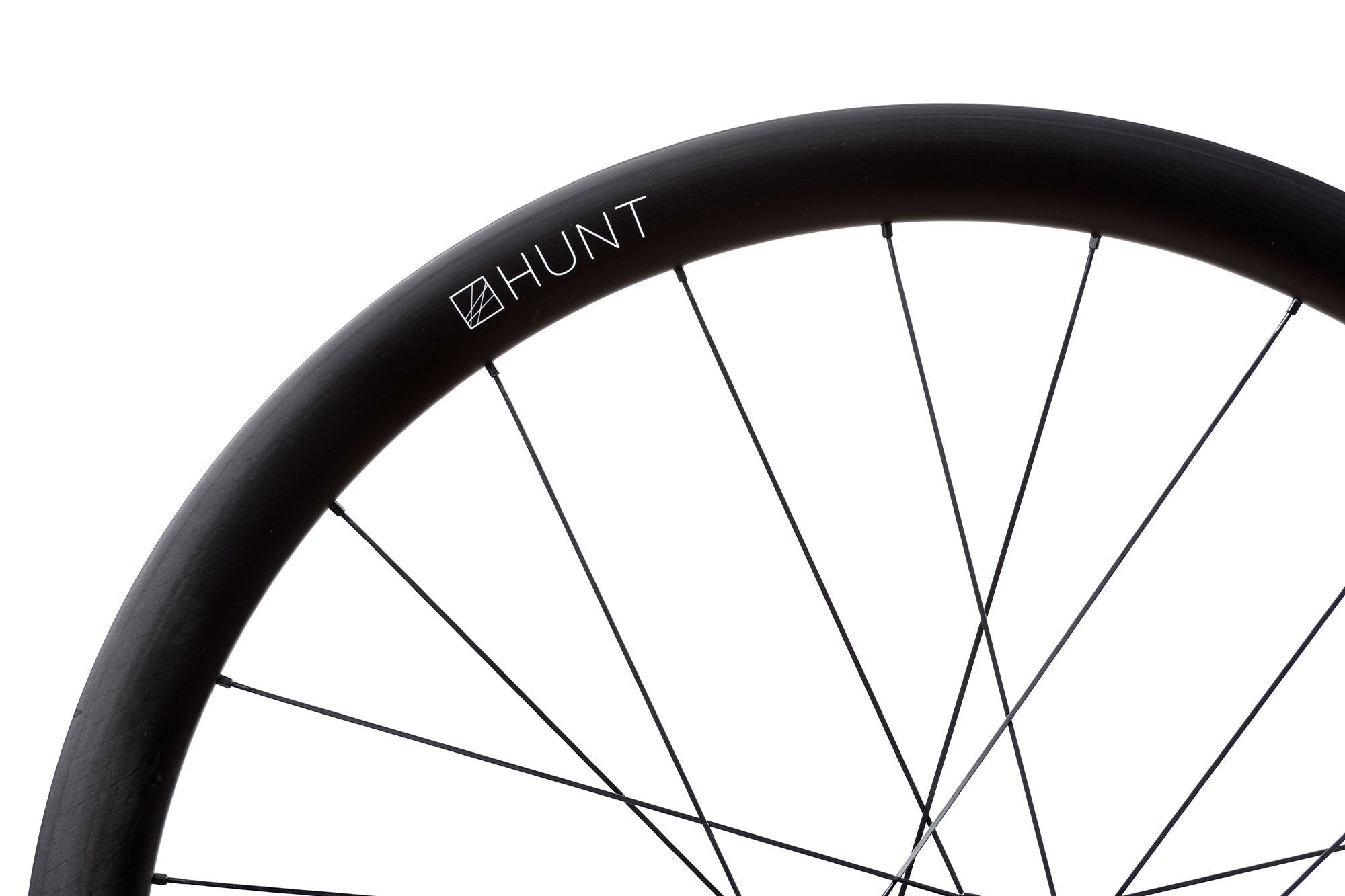

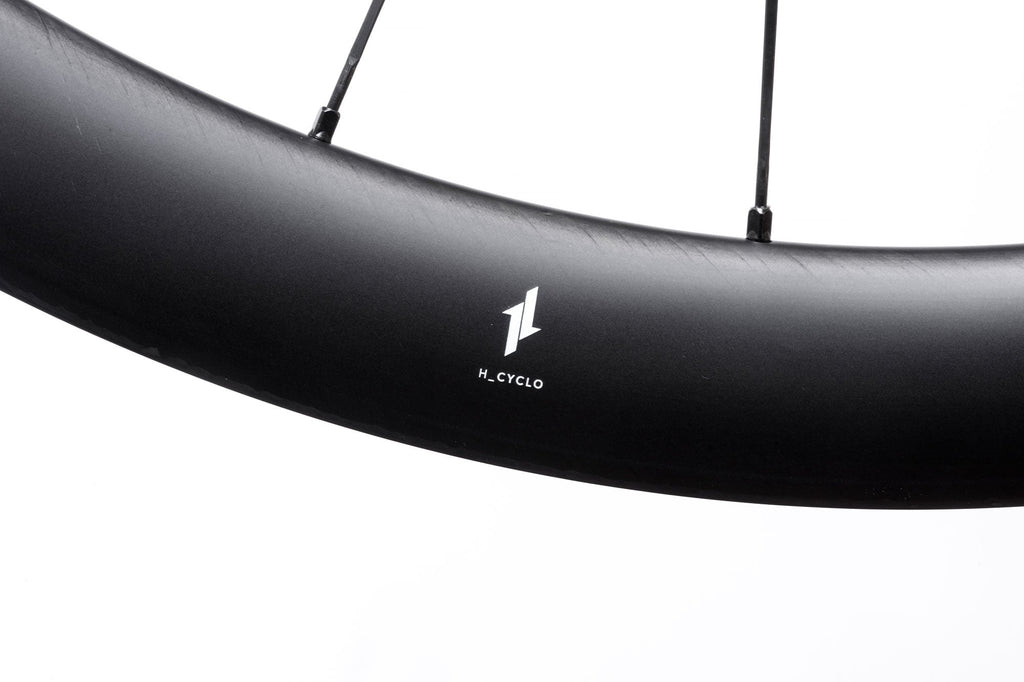

RIM PROFILE

A strong and super-lightweight hookless rim. The rim dimensions are 40mm deep and 30mm wide external (25mm internal) optimised for 35-40mm tyres. Tubeless for lower weight, rolling resistance, and better puncture protection. When designing a wheelset with absolute lightness and off-road capabilities as the driving principle, then a hookless rim profile is the right choice.

BEARINGS

The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings by EZO Japan.

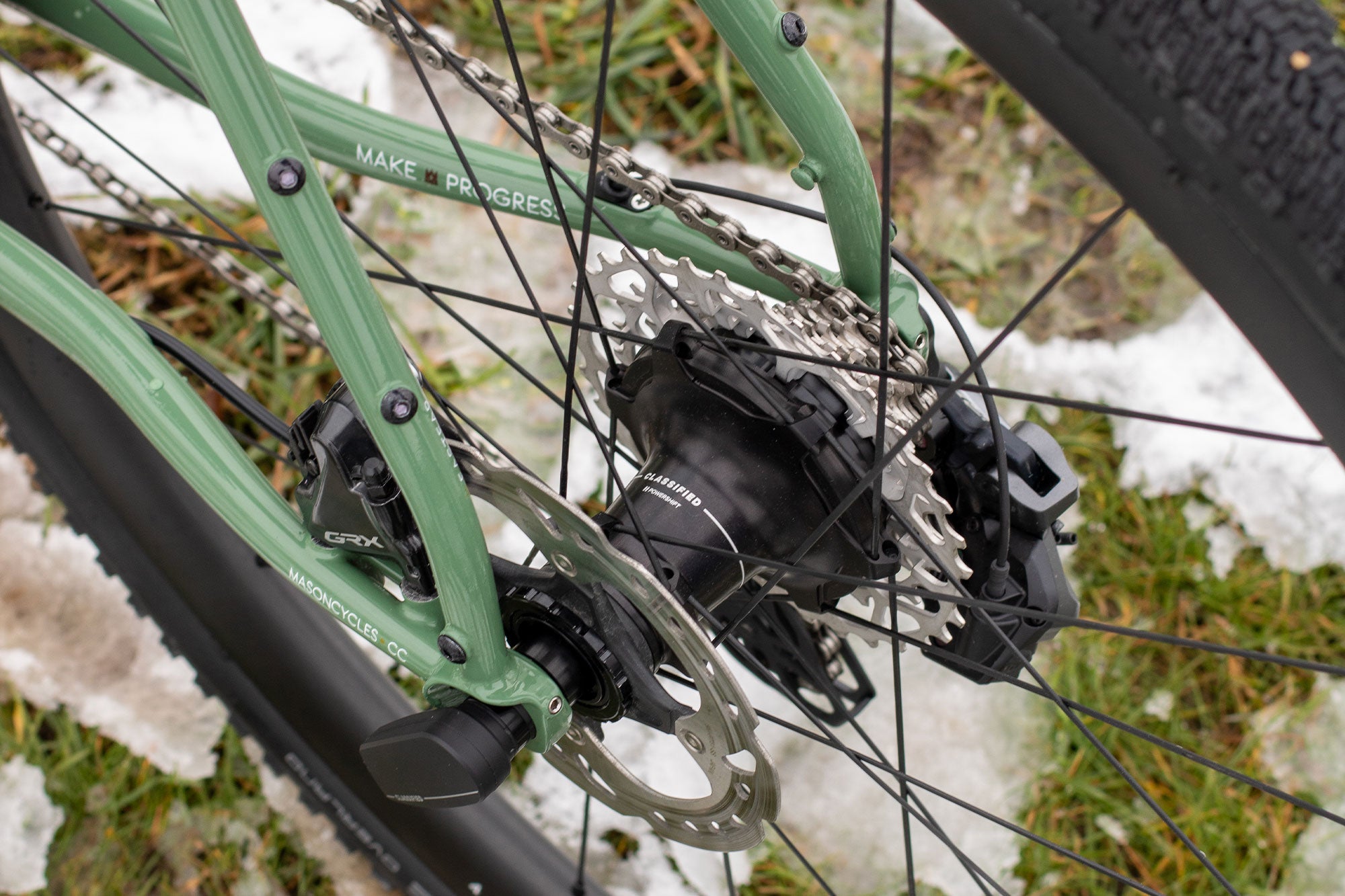

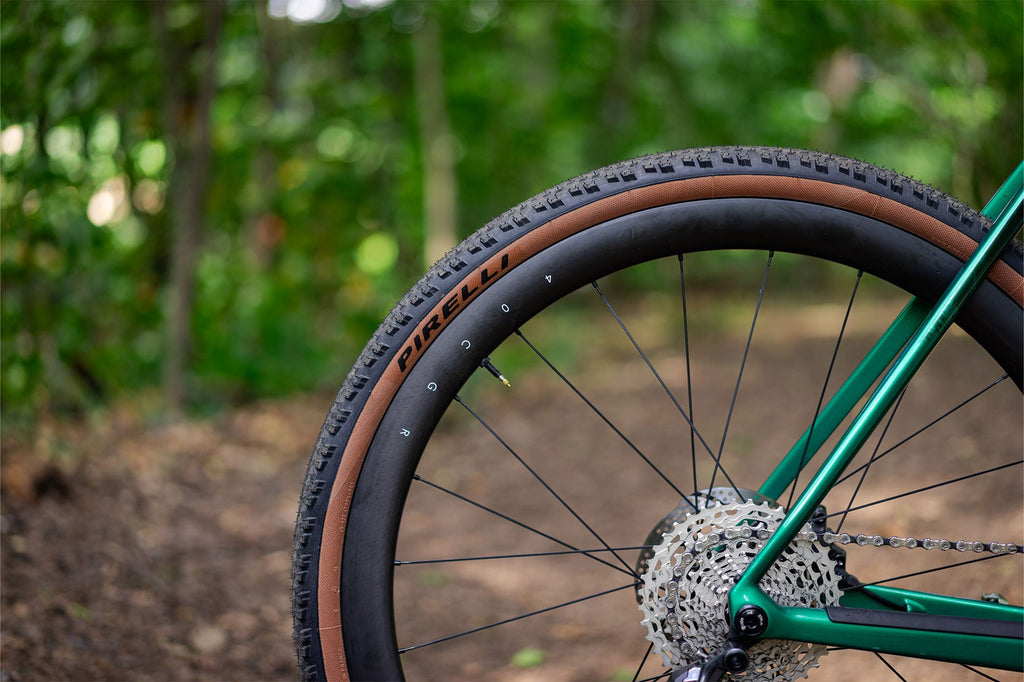

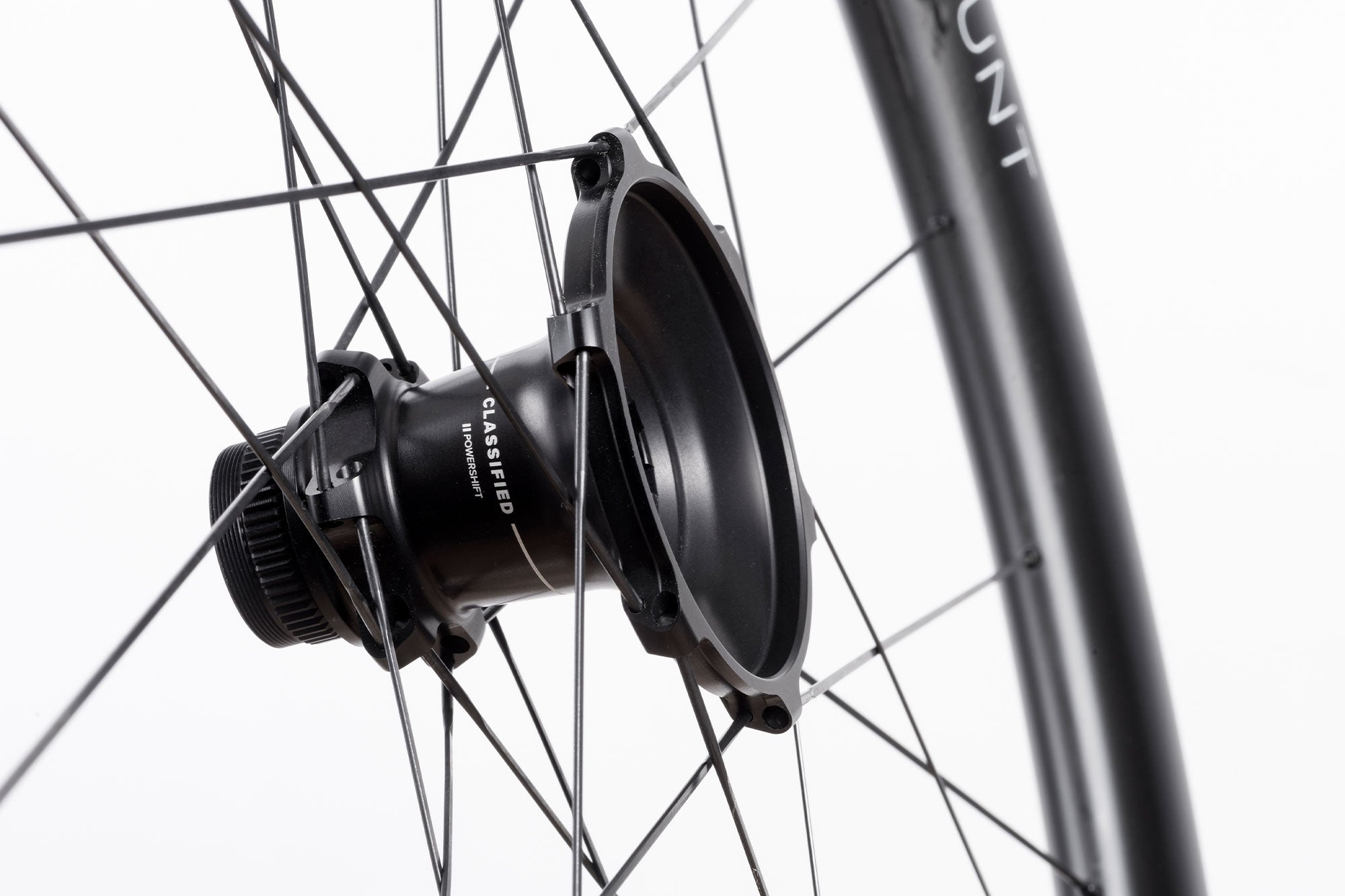

CLASSIFIED REAR HUB

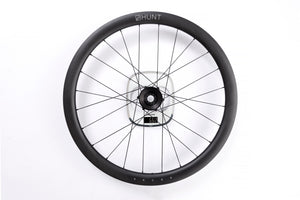

Classified rear hubshell has been fitted to this wheelset by hand, and will arrive ready to fit a Powershift hub system.

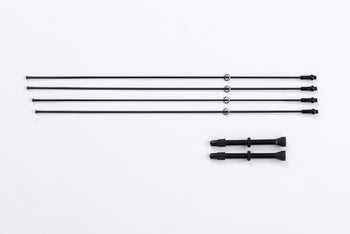

SPOKES

We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter but also provide a greater degree of elasticity to maintain tensions longer and add fatigue resistance. PSR spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a hex head so you can achieve precise tensioning. Combining these components well is key which is why all HUNT wheels are hand-built.

TYRE WIDTH OPTIMISATION

25mm internal rim profile, featuring a hookless and ETRTO-compliant tubeless rim, designed exclusively for tubeless tyres.

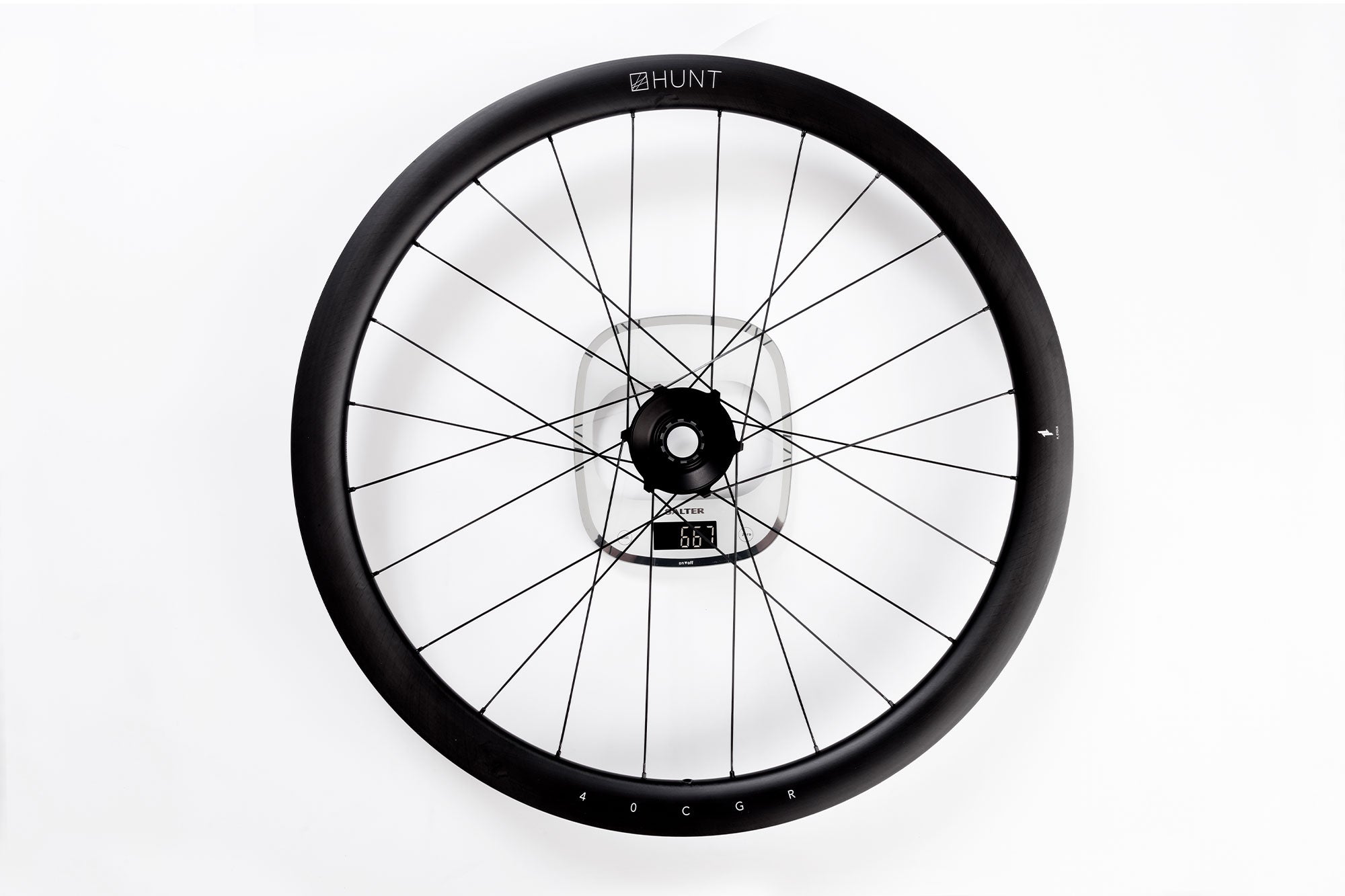

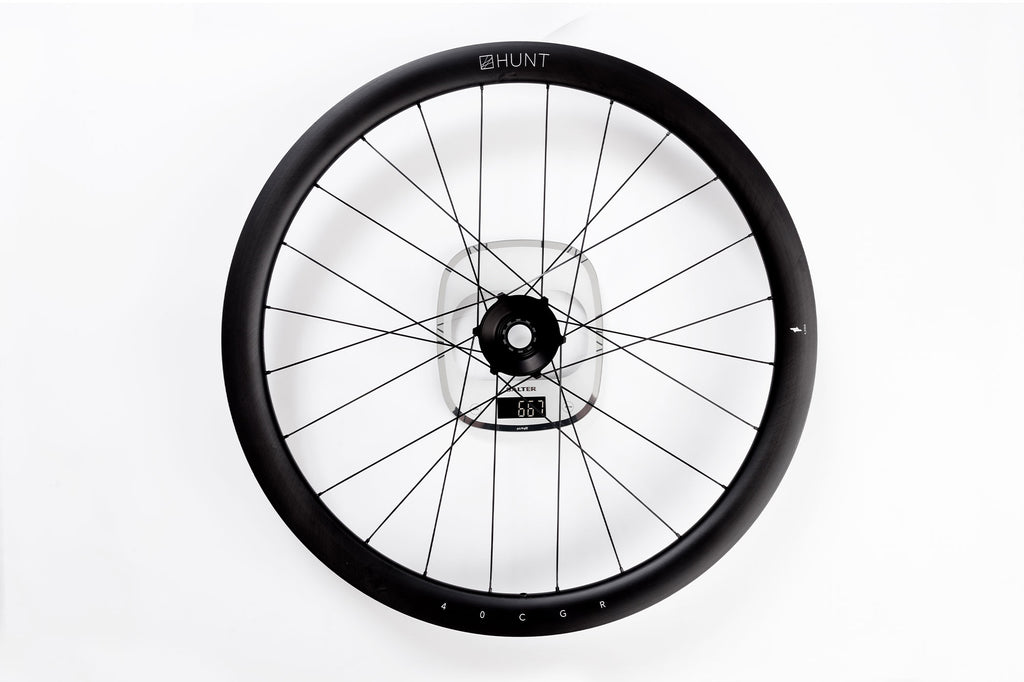

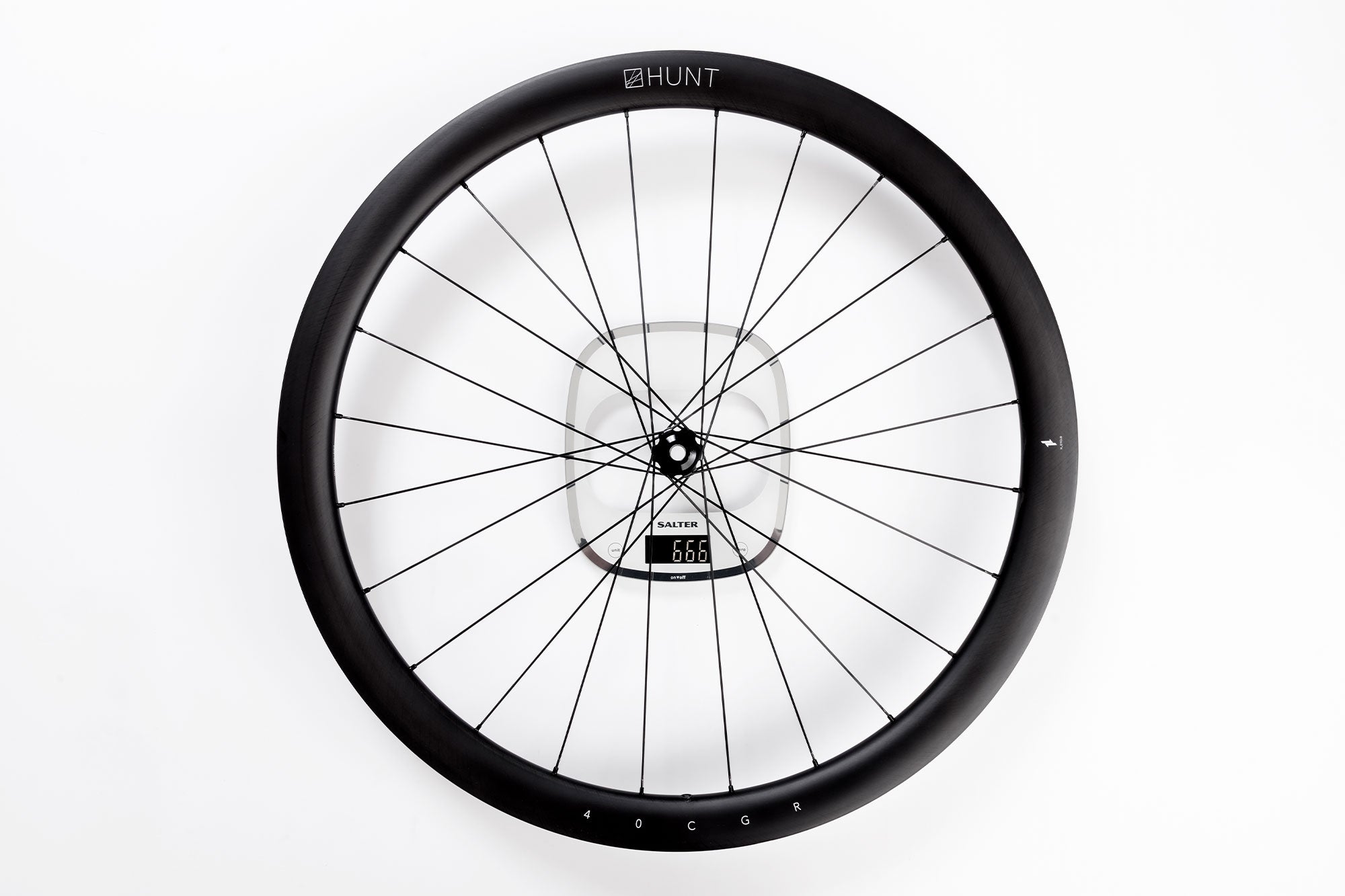

WEIGHT

1,270g (Including Powershift rear hub shell)

What's in the box _

  • HUNT BlackShield tubeless tape fitted to wheels.
  • 60mm Tubeless Valves
  • Quality control card signed by your wheel builder.

<h1>In The Box</h1><i><ul><li>HUNT BlackShield tubeless tape fitted to wheels.</li><li>Tubeless Valves</li> <li>Quality control card signed by your wheel builder.</li></ul></i>

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 130kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 105kgs then an experienced bike mechanic should check the wheel regularly.
