HUNT 50 Carbon Aero Disc Wheelset

1487g Depth Width ext Width int size
50 mm 27 mm 19 mm 700c

With wind-cheating aerodynamic benefits, fast-engaging and reliable hubs, and proven track record in racing, the 50 Carbon Aero Disc is a favourite among riders for good reason. Ridden to Giro D'Italia stage victory by Team Qhubeka (Mauro Schmid, Stage 11, 2021 Edition).

Tyre size: Optimized for 25 to 28mm tyres; work well with 23mm up to 40mm.

Which freehub do I need?
€999

€99 Deposit option available

Secure your order with a €99 deposit and enjoy the convenience of deferred payment.
Pre-Order Now. Shipping: Dec Wk 4Items are selected to ship from us in the week stated. Delivery time is 3-6 days*

We will ask for Axle info after checkout.

All import duties, taxes and handling costs are covered by us.

Order ETA 3-6 days*
Our wheels are in high demand, don't miss out. Order now.

*If shown in stock

More details Right

The Purpose _

<h1>Weight</h1><i>The consequence of the fanatical attention to detail is an outstandingly light 1487 gram wheelset weight. Gone are the days when having a disc-equipped road bike always resulted in a weight penalty. You can now float up the climbs, and then brake later than the others on the way back down!</i>

The Purpose _

Disc brake bikes have quickly become the norm in road races, criteriums, and even time trials, from the amateur ranks to the WorldTour, due to the numerous advantages provided.

The revolution is happening and to capitalise on the benefits, you will need an aero wheelset that delivers speed in buckets. Introducing the 50 Carbon Aero Disc, a HUNT best-seller and rider favourite, proven at the highest level of the sport. We’re proud to offer you the exact wheelset raced to victory on Stage 11 of the 2021 Giro d’Italia by Mauro Schmid of Team Qhubeka.

Read the full aerodynamics report on the 50 Carbon Aero Disc here.

KEY FEATURES_

Rims

The super-wide 27mm rim provides superior aerodynamic performance. The U-profile serves up great handling and reduces drag across multiple wind yaw-angles. The wider 19mm internal rim bed opens out your tyre profile providing exceptional vibration reduction, grip and low rolling-resistance.

<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard, you just need to let us know what you require by filling in the simple form on the confirmation page after checkout. Please note these wheels will not work with the older 15mm front road TA standard.</i>

Sprint Hubs

Race Season SPRINT straight-pull hubs, boasting an engagement rate of just 7.5 degrees owing to the leaf-sprung, multi-point pawls and 48 ratchets in the hub shell. Center-lock brake mount.

Bearings

Featuring LU/LB bearings which are low-friction sealed on the internal face to further reduce rolling resistance and increase your speed whilst maintaining excellent sealing on the exposed faces.

Full Specs _

Rims
Disc-specific tubeless-ready profileHookedH-lock bead-seat up-kicks for easy and secure tubeless installationUnidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes27mm outer and 19mm inner width50mm depthMatt black base finished with matt white contrasting graphics.
  • Disc-specific tubeless-ready profile
  • Hooked
  • H-lock bead-seat up-kicks for easy and secure tubeless installation
  • Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes
  • 27mm outer and 19mm inner width
  • 50mm depth
  • Matt black base finished with matt white contrasting graphics.
Spokes
20 front and 24 rear laced 2 cross.Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.Straight-pull for excellent torsional strength and direct power transferCold drawn from high grade T302 (18/10) stainless steel wire by Sandvik SwedenPatented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.Black stainless steel.
  • 20 front and 24 rear laced 2 cross.
  • Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
  • Straight-pull for excellent torsional strength and direct power transfer
  • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
  • Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
  • Black stainless steel.
Nipples
Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.16mm length with washer for a strong connection to the spoke added durability.14 gauge.Black anodized finish.
  • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
  • 16mm length with washer for a strong connection to the spoke added durability.
  • 14 gauge.
  • Black anodized finish.
Tyres Info
HUNT recommends a 25-28mm tyre for best performance, tyre widths between 23mm and 50mm are also safe to use.  Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here. Tubeless-ready for lower weight and rolling resistance. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • HUNT recommends a 25-28mm tyre for best performance, tyre widths between 23mm and 50mm are also safe to use.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle Sizes
These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mmRear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mmIf you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.

These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:

  • Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm

If you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.

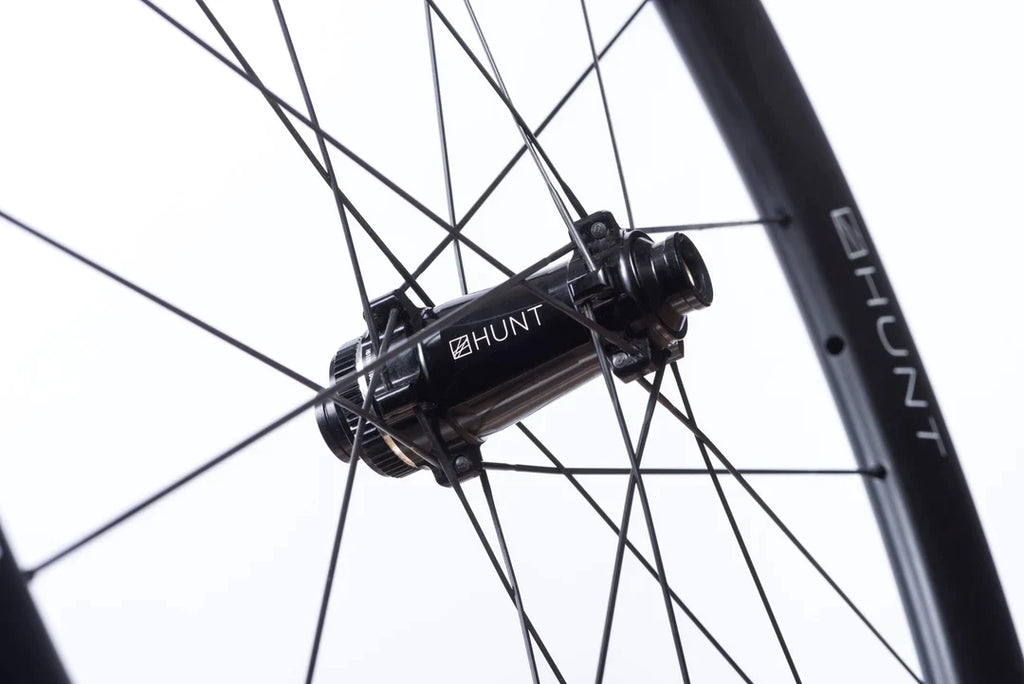

Front Hub
Forged and CNC’d 6061-T6 heat treated aluminium alloy body.7075-T6 aluminium alloy axles.Polished anodized black finish with laser graphics.Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Polished anodized black finish with laser graphics.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
Rear Hub
7075-T6 heat-treated aluminium alloy freehub body.Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.All freehub standards accounted for.Shimano/SRAMHunt Race Season Disc straight-pull super-light alloy.Forged and CNC’d 6061-T6 heat treated aluminium alloy body.7075-T6 aluminium alloy axles.Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately herePolished anodized black finish with laser graphics.
  • 7075-T6 heat-treated aluminium alloy freehub body.
  • Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
  • All freehub standards accounted for.
  • Shimano/SRAM
  • Hunt Race Season Disc straight-pull super-light alloy.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Polished anodized black finish with laser graphics.
Bearings
High-grade Japanese EZO bearings.Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual sealed external face bearings.Incredibly fast rolling.
  • High-grade Japanese EZO bearings.
  • Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual sealed external face bearings.
  • Incredibly fast rolling.

HIGH SPECIFICATION COMPONENTS _

<h1>Rims</h1><i>A strong and super-lightweight rim featuring unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes. The wide aero profile delivers excellent handling and speed. The evolution of disc brake specific construction has allowed massive weight savings over equivalent rim-brake rims. The removal of braking forces on the rim allows a strong but very light rim to be designed that can focus on it's primary roles of supporting the tyre and spoke forces.</i>
Rims

A strong and super-lightweight rim featuring unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes. The wide aero profile delivers excellent handling and speed. The evolution of disc brake specific construction has allowed massive weight savings over equivalent rim-brake rims. The removal of braking forces on the rim allows a strong but very light rim to be designed that can focus on it's primary roles of supporting the tyre and spoke forces.

<h1>Freehub Body</h1><i>Featuring 3 multi-point pawls with 3 teeth each and a 48t ratchet ring. The result an impressively low 7.5 deg engagement angle. Durability is a theme for Hunt as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result all our freehub bodies have Steel Spline Insert re-enforcements to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
Freehub Body

Featuring 3 multi-point pawls with 3 teeth each and a 48t ratchet ring. The result an impressively low 7.5 deg engagement angle. Durability is a theme for Hunt as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result all our freehub bodies have Steel Spline Insert re-enforcements to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.
Bearings

The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings by Japanese experts EZO. This wheelset has three of the rear hub bearings upgraded to S&S low-friction LU/LB seals on the internal bearing face to further reduce rolling resistance whilst maintaining excellent sealing on the exposed faces.

<h1>Spokes</h1><i>We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter but also provide a greater degree of elasticity to maintain tensions longer and add fatigue resistance. PSR spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a hex head so you can achieve precise tensioning. Combining these components well is key which is why all Hunt wheels are hand-built.</i>
Spokes

We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter but also provide a greater degree of elasticity to maintain tensions longer and add fatigue resistance. PSR spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a hex head so you can achieve precise tensioning. Combining these components well is key which is why all Hunt wheels are hand-built.

<h1>Rim Bed</h1><i>H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>
Rim Bed

H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.

<h1>Rim Surface</h1><i>V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.</i>
Rim Surface

V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.

REVIEWS _

Bike Magazine and Websites Expert's Views

4.5/5 BIKERADAR REVIEW

"Their low weight is evident in acceleration and climbing"

What's in the box _

  • Hunt Black Shield tubeless tape fitted to wheels.
  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
  • Cassette spacer for 8/9/10 speed
  • 60mm Tubeless Valves
  • Spare of each spoke plus nipples
  • Quality control card signed by your wheel builder

<h1>In the Box</h1><i><ul><li>Hunt Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Tubeless Valves</li><li>Spare of each spoke plus nipples</li><li>Quality control card signed by your wheel builder</li></ul></i>

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 125kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 105Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 90psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

We've got your back

Rider Experience Support

Unmatched rider support, 7 days a week. For quick and immediate access to all the help you need, try our Live Chat. Our team consists of real bike riders who are fully equipped to answer any questions and help out. See Contact Us page for more details.

Spares Available

Any spares for our wheelsets can be found on our website. If you assistance, contact us and we can help you.

Trustpilot

All Duties Covered

We understand that there has been some uncertainty and change since the UK’s departure from the EU. With that in mind, we want to make ordering from HUNT as smooth as possible for our European riders by covering all import duties, taxes and handling costs when you place your order on eu.huntbikewheels.com, there are NO hidden charges - the price that you see advertised is the price that you pay.

60 Day Ride and Return

These wheels come with H_CARE (Free Lifetime Crash Replacement) for the first owners. A full 3 years (4 years on CeramicSpeed bearings*) from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects. Read more here.

ABOUT HUNT _

Hunt Bike Wheels are a team of talented, passionate riders with a wealth of industry experience, and set out to bring you the latest, most practical, forward-thinking technology in all things round.

Our mission is to serve devoted riders with the highest performing products, backed by best-in-class rider support.

All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
