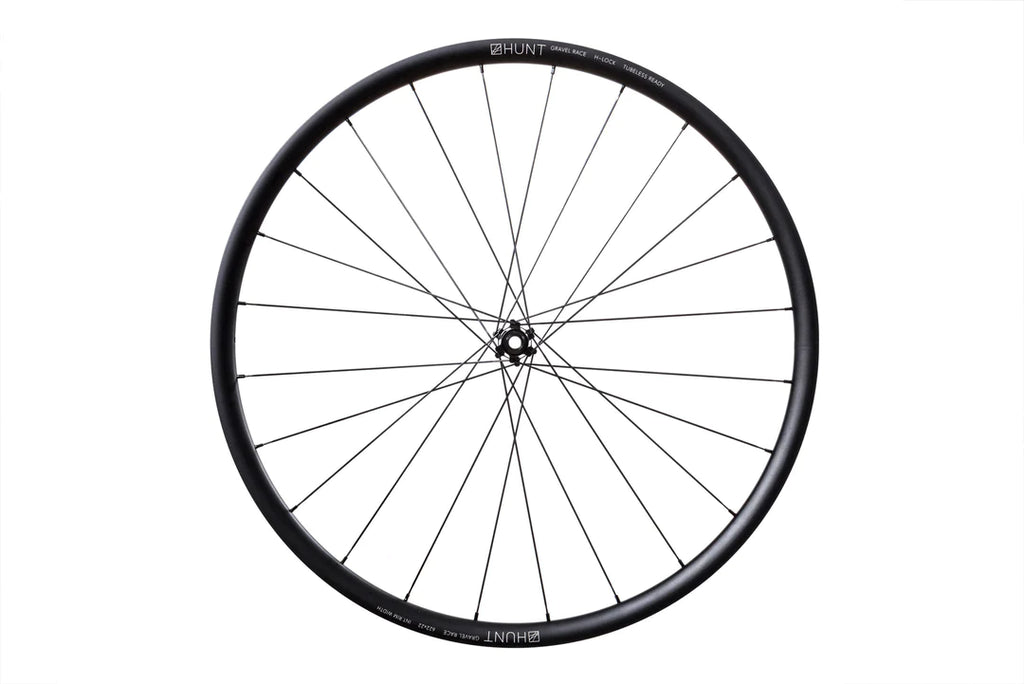

HUNT Gravel Race Wheelset
HUNT Gravel Race Wheelset
HUNT Gravel Race Wheelset
<h1>RIMS</h1><i>A strong and lightweight 6069-T6 heat-treated rim. The rim profile is rounded and true disc specific which allows higher strength to weight. The rim dimensions are wide at 26mm (22mm internal) which creates a great tyre profile with wider 30-45mm tyres, giving excellent grip and lower rolling resistance. </i>
<h1>SPOKES</h1><i>The SAPIM CX-Ray receives one of the best results in fatigue testing of any spoke. Its unique strength and flexibility make the CX-Ray suitable for the Gravel Race wheels. The nipples come with a square head so you can achieve precise tensioning. Combining these components well is key which is why all HUNT wheels are hand-built.</i>
<h1>FREEHUB BODY</h1><i>Featuring 3 multi-point pawls with 3 teeth each and a 48t ratchet ring. The result an impressively low 7.5 deg engagement angle. Durability is a theme for HUNT, and so all our freehub bodies have Steel Spline Insert re-enforcements to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
<h1>BEARINGS</h1><i>Bearings are the heart of any wheel and investing in them makes huge sense, so we went to Japanese bearing experts EZO and invested extra to spec their high-grade precision sealed cartridge bearings in our full range.</i>
<h1>NIPPLES</h1><i>To accompany these high-end spokes, we selected alloy nipples for our HUNT Gravel Race wheels. All with the goal to create the ultimate light weight, serviceable and durable wheels for gravel. To finish it off, we are using external spoke nipples to achieve ease of service so when running tubeless you won’t need to take off the rim tape to true. As well as the standard square body we chose nipples with a hex head so you can achieve precise tensioning.</i>
<h1>RIM BED</h1><i>H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>
<h1>IN THE BOX</h1><i><ul><li>Hunt Black Shield tubeless tape fitted to wheels.</li> <li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li> <li>Tubeless Valves</li><li> Spare of each spoke plus nipples</li><li> Quality control card signed by your wheel builder</li></ul> </i>
HUNT Gravel Race Wheelset
HUNT Gravel Race Wheelset
<h1>RIMS</h1><i>A strong and lightweight 6069-T6 heat-treated rim. The rim profile is rounded and true disc specific which allows higher strength to weight. The rim dimensions are wide at 26mm (22mm internal) which creates a great tyre profile with wider 30-45mm tyres, giving excellent grip and lower rolling resistance. </i>
<h1>SPOKES</h1><i>The SAPIM CX-Ray receives one of the best results in fatigue testing of any spoke. Its unique strength and flexibility make the CX-Ray suitable for the Gravel Race wheels. The nipples come with a square head so you can achieve precise tensioning. Combining these components well is key which is why all HUNT wheels are hand-built.</i>
<h1>FREEHUB BODY</h1><i>Featuring 3 multi-point pawls with 3 teeth each and a 48t ratchet ring. The result an impressively low 7.5 deg engagement angle. Durability is a theme for HUNT, and so all our freehub bodies have Steel Spline Insert re-enforcements to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
<h1>BEARINGS</h1><i>Bearings are the heart of any wheel and investing in them makes huge sense, so we went to Japanese bearing experts EZO and invested extra to spec their high-grade precision sealed cartridge bearings in our full range.</i>
<h1>NIPPLES</h1><i>To accompany these high-end spokes, we selected alloy nipples for our HUNT Gravel Race wheels. All with the goal to create the ultimate light weight, serviceable and durable wheels for gravel. To finish it off, we are using external spoke nipples to achieve ease of service so when running tubeless you won’t need to take off the rim tape to true. As well as the standard square body we chose nipples with a hex head so you can achieve precise tensioning.</i>
<h1>RIM BED</h1><i>H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>
<h1>IN THE BOX</h1><i><ul><li>Hunt Black Shield tubeless tape fitted to wheels.</li> <li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li> <li>Tubeless Valves</li><li> Spare of each spoke plus nipples</li><li> Quality control card signed by your wheel builder</li></ul> </i>

HUNT Gravel Race Wheelset

1459g Depth Width ext Width int size
25 mm 26 mm 22 mm 700c

Race-ready alloy upgrade wheels for those seeking quicker acceleration and high-speed hub engagement for their gravel or all-road bike.

Tyre size: Optimized for 30 to 45mm tyres; work well with 25mm up to 55mm.

Which freehub do I need?
€649

€99 Deposit option available

Secure your order with a €99 deposit and enjoy the convenience of deferred payment.
Pre-Order Now. Shipping:
Pre-Order Jan Wk 3
Shimano Microspline - Pre-Order Mar Wk 2
Wheels are scheduled to ship from us in the week stated. Delivery time is 3-6 days*

We will ask for Axle info after checkout.

All import duties, taxes and handling costs are covered by us.

Order ETA 3-6 days*
Our wheels are in high demand, don't miss out. Order now.

*If shown in stock

More details Right

The Purpose _

The Purpose _

The HUNT Gravel Race 700c wheelset was designed to offer super-sharp performance on the path less pedalled. The line between road and gravel has never been more blurred, so we built a wheelset that could excel on gravel and fast off-road segments, while providing the responsiveness and durability riders demand. Lightweight 6069-T6 alloy rims offer quick acceleration, combined with our straight-pull Sprint hubs, providing just 7.5 degrees of engagement. Whether going full gas on the flats or cresting over a climb, you’ll be ready for whatever terrain lies ahead.

KEY FEATURES_

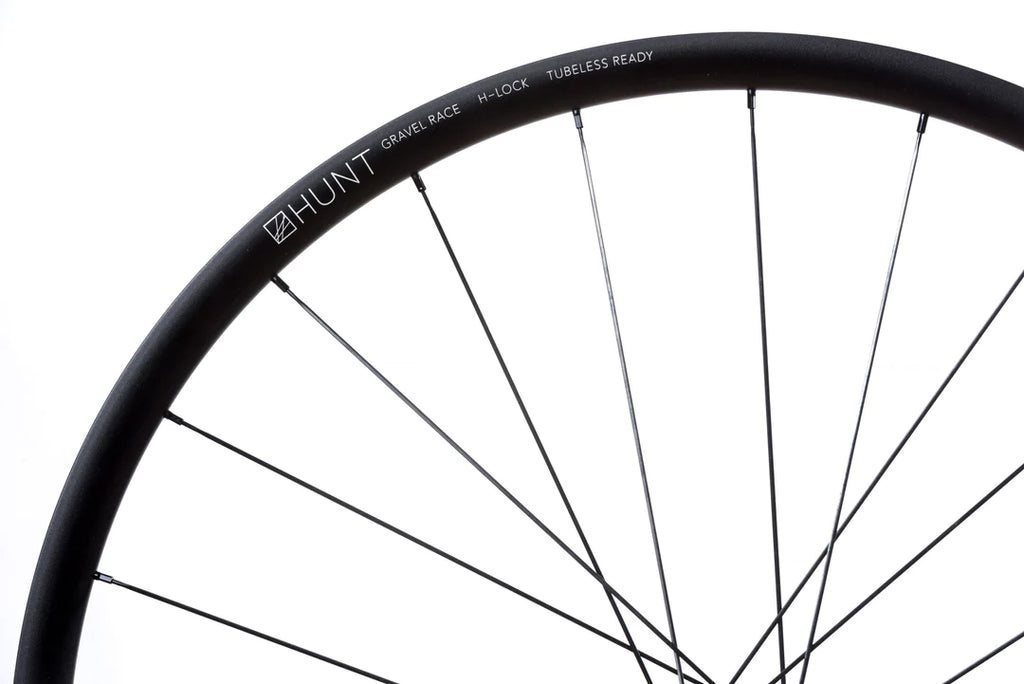

Rims

700c 6069-T6 Heat treated rim material. Tubeless-ready. Disc specific. Rounded 25mm profile. Micro-peened finish strengthens the surface even further. H_LOCK bead-seat for easy and secure tubeless installation.

Sprint Hubs

Race Season SPRINT straight-pull hubs, boasting an engagement rate of just 7.5 degrees owing to the leaf-sprung, multi-point pawls and 48 ratchets in the hub shell. Center-lock brake mount. Please note: If you require a 6-bolt adapter you can purchase separately here.

Spokes

Highly durable SAPIM CX-Ray, combining strength and flexibility to suit gravel racing. The nipples come with a square head so you can achieve precise tensioning.

Full Specs _

Rims
Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless-rim tape and valves included.HookedH_LOCK bead-seat up-kicks for easy and secure tubeless installation.6069-T6 heat-treated aluminium alloyAsymmetric, to balance spoke tensions.Disc-specific tubeless-ready profile.26mm outer and 22mm inner width ideal for 25-45mm tyre widths.Rounded 25mm deep profile.Micro-peened black finish strengthens the surface even further.Laser etched graphics for excellent durability.
  • Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless-rim tape and valves included.
  • Hooked
  • H_LOCK bead-seat up-kicks for easy and secure tubeless installation.
  • 6069-T6 heat-treated aluminium alloy
  • Asymmetric, to balance spoke tensions.
  • Disc-specific tubeless-ready profile.
  • 26mm outer and 22mm inner width ideal for 25-45mm tyre widths.
  • Rounded 25mm deep profile.
  • Micro-peened black finish strengthens the surface even further.
  • Laser etched graphics for excellent durability.
Spokes
Sapim CX Ray.24 front and 24 rear interlaced.Straight-pull for excellent torsional strength and direct power transferBlack stainless treatment.
  • Sapim CX Ray.
  • 24 front and 24 rear interlaced.
  • Straight-pull for excellent torsional strength and direct power transfer
  • Black stainless treatment.
Nipples
Alloy square body for external adjustment and square head for easy internal adjustment/tensioning. 14 gauge.Black anodized finish.
  • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
  • 14 gauge.
  • Black anodized finish.

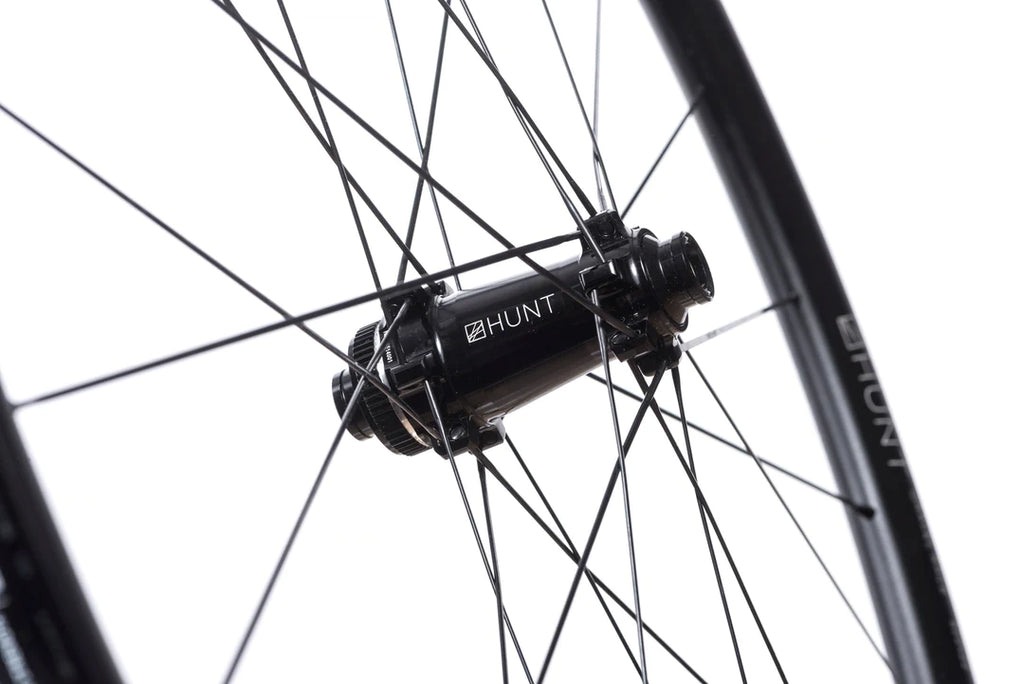

Front Hub
Forged and CNC’d 6061-T6 heat treated aluminium alloy body.7075-T6 aluminium alloy axles.Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.Polished anodized black finish with laser graphics.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
  • Polished anodized black finish with laser graphics.

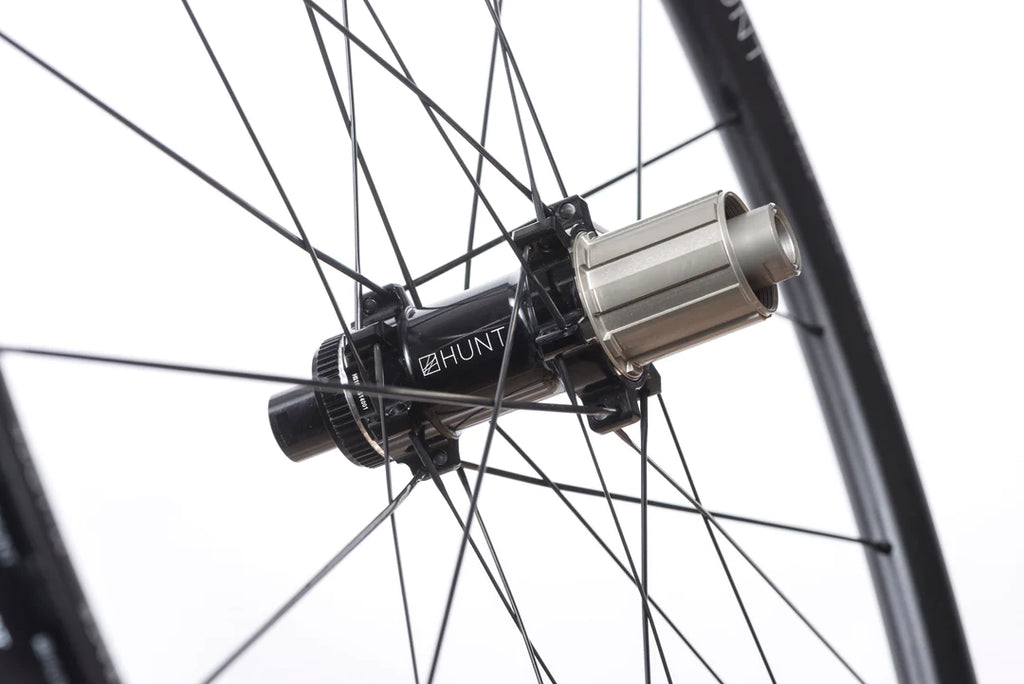

Rear Hub
7075-T6 heat-treated aluminium alloy freehub bodySteel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.Hunt Race Season Disc straight-pull super-light alloy.Forged and CNC’d 6061-T6 heat treated aluminium alloy body.7075-T6 aluminium alloy axles.Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately herePolished anodized black finish with laser graphics.
  • 7075-T6 heat-treated aluminium alloy freehub body
  • Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies
  • 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
  • Hunt Race Season Disc straight-pull super-light alloy.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Polished anodized black finish with laser graphics.
Bearings
High-grade by EZO Japan and S&S.Rear hub upgraded to even faster rolling S&S LU/LB low-friction sealed internal face, dual sealed external face bearings.Incredibly fast rolling.
  • High-grade by EZO Japan and S&S.
  • Rear hub upgraded to even faster rolling S&S LU/LB low-friction sealed internal face, dual sealed external face bearings.
  • Incredibly fast rolling.
Tyres Info
HUNT recommends a 38mm tyre for best performance, tyre widths between 25mm and 65mm are also safe to use.  Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here. Tubeless-ready for lower weight and rolling resistance. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • HUNT recommends a 38mm tyre for best performance, tyre widths between 25mm and 65mm are also safe to use.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.

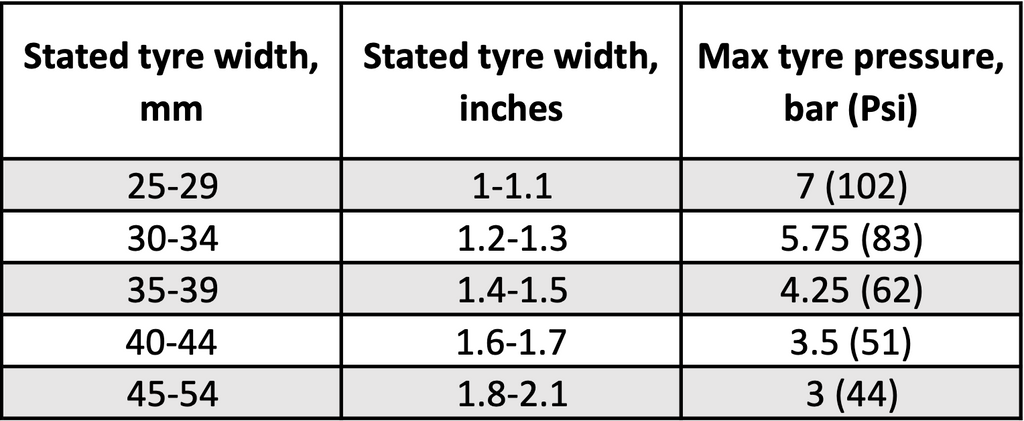

  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle Sizes
These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mmRear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mmIf you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.

These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:

  • Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm
  • If you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.

HIGH SPECIFICATION COMPONENTS _
Rims

A strong and lightweight 6069-T6 heat-treated rim. The rim profile is rounded and true disc specific which allows higher strength to weight. The rim dimensions are wide at 26mm (22mm internal) which creates a great tyre profile with wider 30-45mm tyres, giving excellent grip and lower rolling resistance.
Spokes

The SAPIM CX-Ray receives one of the best results in fatigue testing of any spoke. Its unique strength and flexibility make the CX-Ray suitable for the Gravel Race wheels. The nipples come with a square head so you can achieve precise tensioning. Combining these components well is key which is why all HUNT wheels are hand-built.
Freehub Body

Featuring 3 multi-point pawls with 3 teeth each and a 48t ratchet ring. The result an impressively low 7.5 deg engagement angle. Durability is a theme for HUNT, and so all our freehub bodies have Steel Spline Insert re-enforcements to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.
Bearings

Bearings are the heart of any wheel and investing in them makes huge sense, so we went to Japanese bearing experts EZO and invested extra to spec their high-grade precision sealed cartridge bearings in our full range.
Nipples

To accompany these high-end spokes, we selected alloy nipples for our HUNT Gravel Race wheels. All with the goal to create the ultimate light weight, serviceable and durable wheels for gravel. To finish it off, we are using external spoke nipples to achieve ease of service so when running tubeless you won’t need to take off the rim tape to true. As well as the standard square body we chose nipples with a hex head so you can achieve precise tensioning.

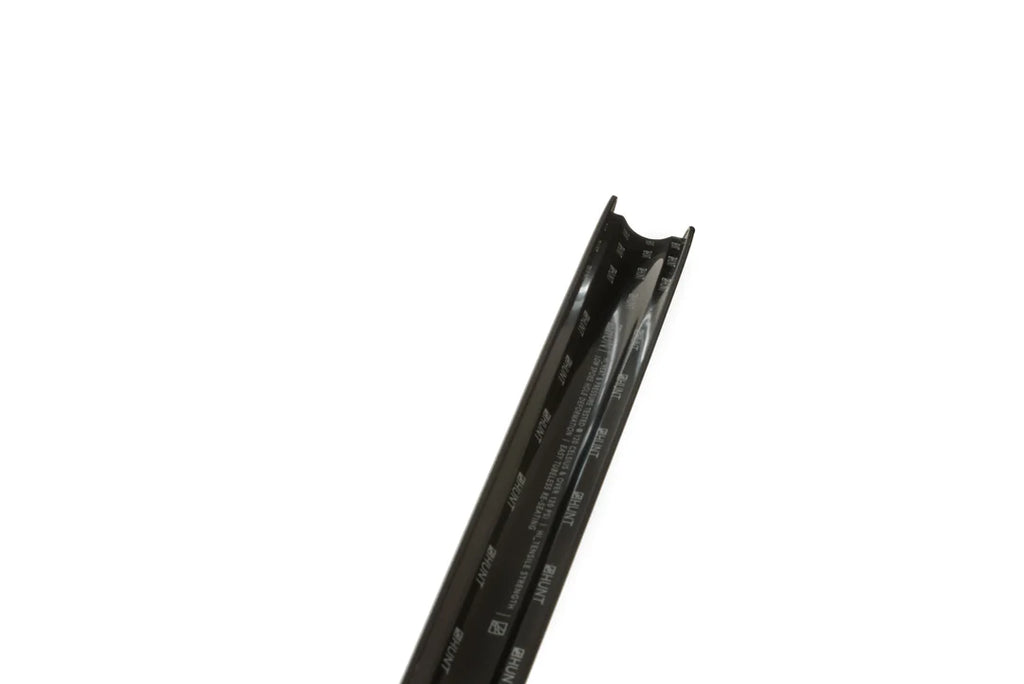

Rim bed

H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.

What's in the box _

  • Hunt Black Shield tubeless tape fitted to wheels.
  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
  • Cassette spacer for 8/9/10 speed
  • 35mm Tubeless Valves
  • Spare of each spoke plus nipples
  • Quality control card signed by your wheel builder

<h1>In the Box</h1><ul><li>HUNT Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Spare spokes with nipples & washers.</li><li>Tubeless Valves</li><li>Quality control card signed by your wheel builder</li></ul>

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 130kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 120Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres minimum 28mm at max 100psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
