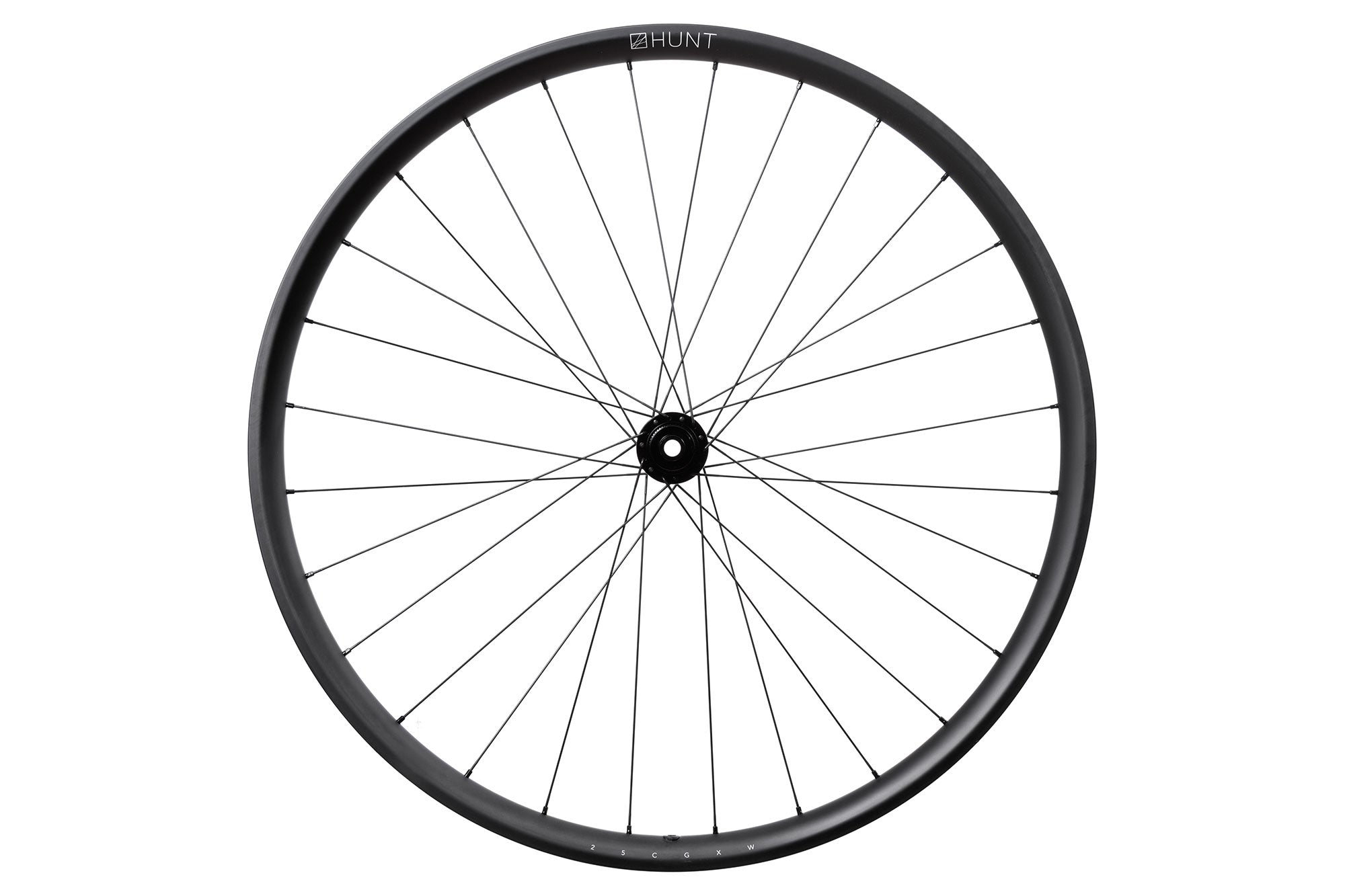

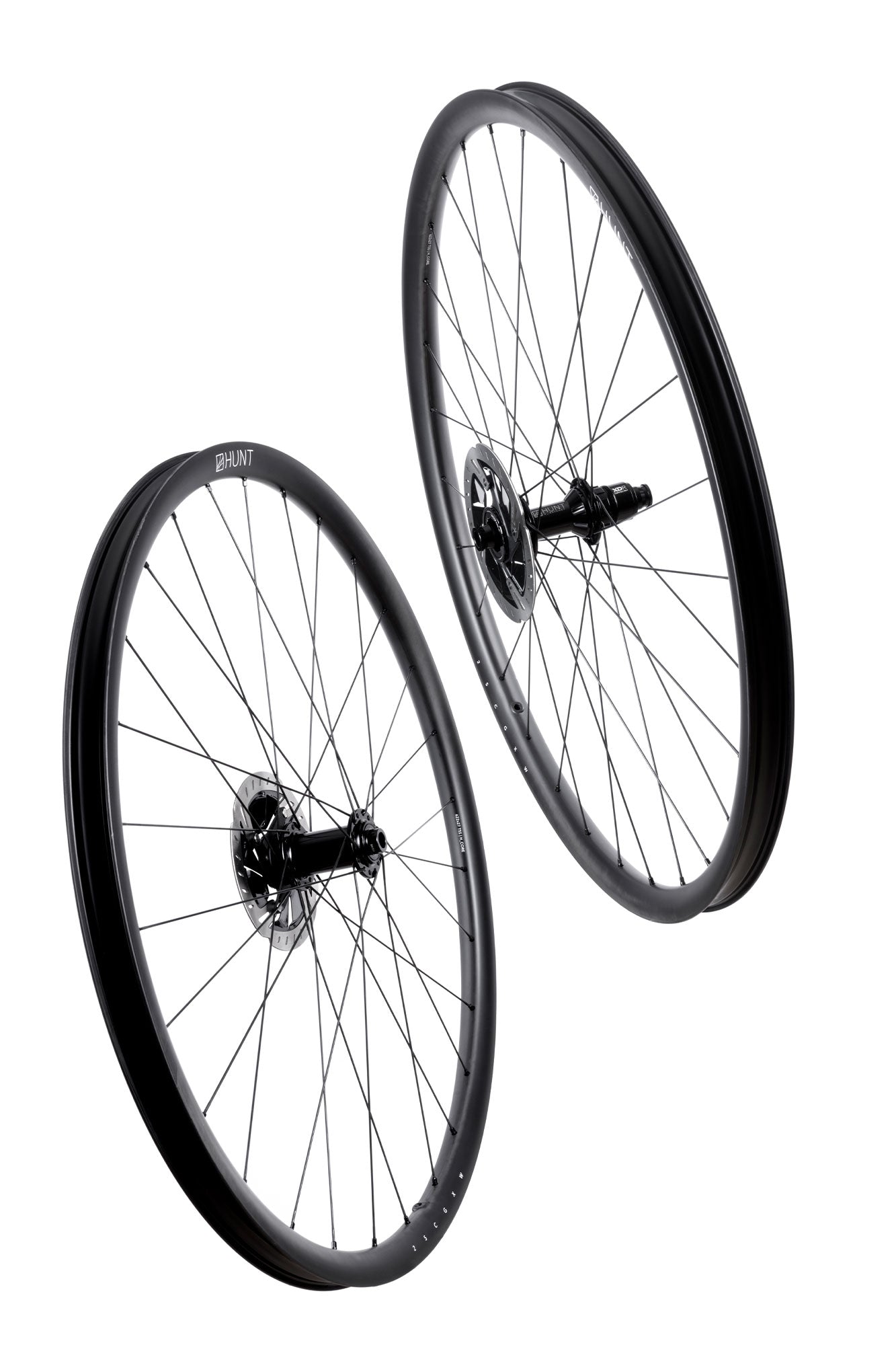

HUNT 25 Carbon Gravel X-Wide Wheelset

1472g Depth Width ext Width int size
25 mm 32 mm 27 mm 700c

Designed for those who push the limits of the ‘gravel’ category. The HUNT 25 Carbon Gravel X-Wide is engineered to handle whatever the trail throws your way. With an H_Core reinforced carbon layup, wide internal rim width and reliable H_Ratchet 36 SGL hubset, this wheelset is ready for remote trails, bikepacking, and technical descents.

Tyre size: Optimised for 45-60mm (2.35") tyre for best performance, works well with 35mm up to 65mm.

Pre-Order Now. Shipping: Sep Wk 2
€1,249

We will ask for axle info after checkout.

The Purpose _

The Purpose _

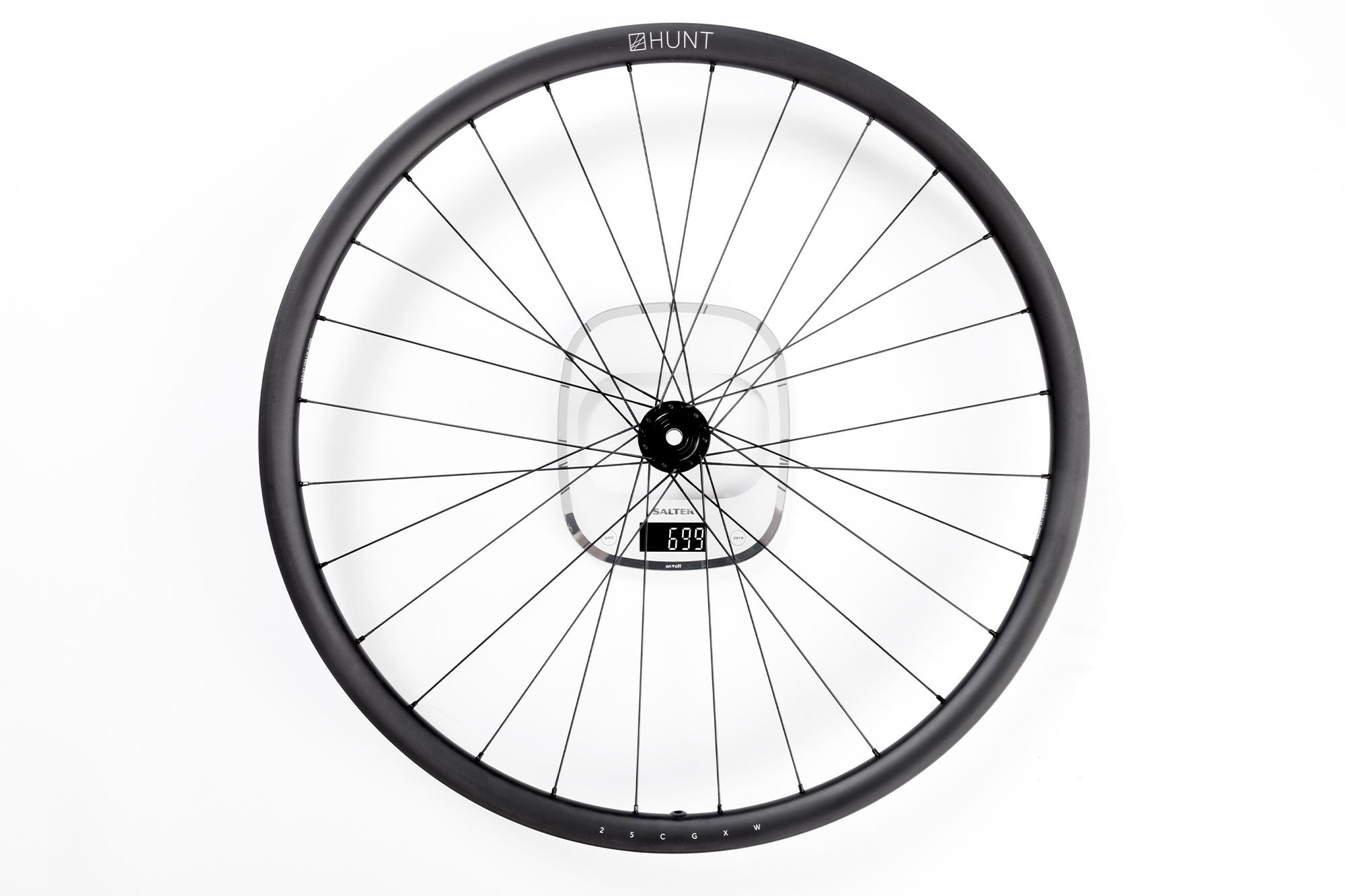

The 25 Carbon Gravel X-Wide was engineered to thrive where adventure begins and pavement ends. Reinforced with our proven H_Core carbon technology, borrowed from our mountain bike wheel, it’s designed for wide gravel and up to 2.5" MTB tyres, loaded bikepacking setups, and demanding singletrack. With a durable build with a weight of just 1472g and 27mm internal rim width, it strikes the balance between rugged capability and all-day efficiency. For ultimate compatibility, we now offer this wheelset with Boost spacing allowing you to go further, ride harder, and leave the worry behind.

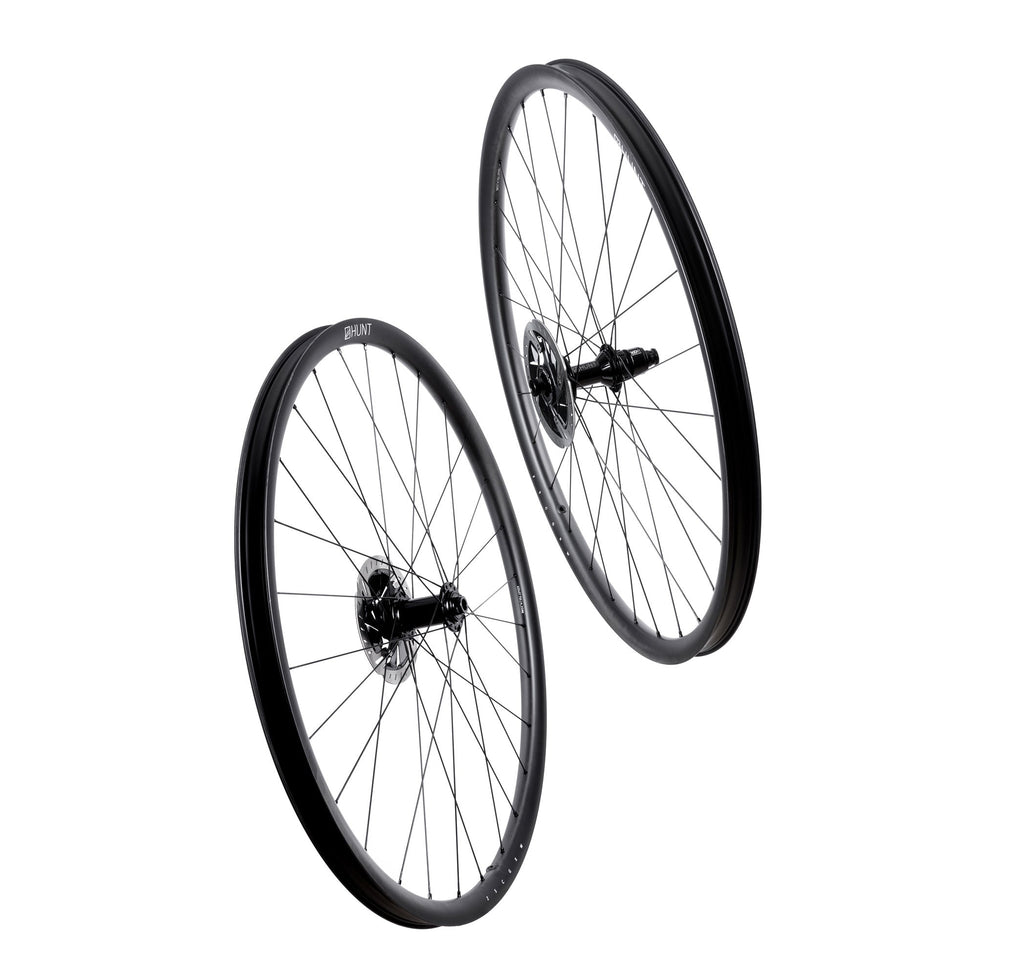

Full Specs _

Rims
32mm external and 27mm internal width, optimised to work with high volume tyres of up to 65mm (2.5”).  25mm depth  H_Core internal carbon insert which increases density of fibres for greater strength.  Preformed angular spoke patches to decrease loading at spoke holes and provide excellent nipple alignment.  H_lock tyre security channel  Hookless TSS profile for optimised weight and strength  Matt black base finished with matt white contrasting graphics.
  • 32mm external and 27mm internal width, optimised to work with high volume tyres of up to 65mm (2.5”).
  • 25mm depth
  • H_Core internal carbon insert which increases density of fibres for greater strength.
  • Preformed angular spoke patches to decrease loading at spoke holes and provide excellent nipple alignment.
  • H_lock tyre security channel
  • Hookless TSS profile for optimised weight and strength
  • Matt black base finished with matt white contrasting graphics.
Spokes
28 Spoke count front and rear in a 2x interlaced spoke pattern.  J-Bend for ease of replacement.  Pillar spokes made from Sandvik T302 (18/10) stainless steel.  Triple butted 2.0-1.7-2.0, higher gauge spokes add impact strength and durability to the wheelset.  Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
  • 28 Spoke count front and rear in a 2x interlaced spoke pattern.
  • J-Bend for ease of replacement.
  • Pillar spokes made from Sandvik T302 (18/10) stainless steel.
  • Triple butted 2.0-1.7-2.0, higher gauge spokes add impact strength and durability to the wheelset.
  • Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
Nipples
Brass for corrosion resistance and durability.  Square body for external adjustment and hex internal head for easy internal adjustment/tensioning.  12mm length with washer for a strong connection to the spoke and added durability.  14 gauge.  Black anodised finish.
  • Brass for corrosion resistance and durability.
  • Square body for external adjustment and hex internal head for easy internal adjustment/tensioning.
  • 12mm length with washer for a strong connection to the spoke and added durability.
  • 14 gauge.
  • Black anodised finish.

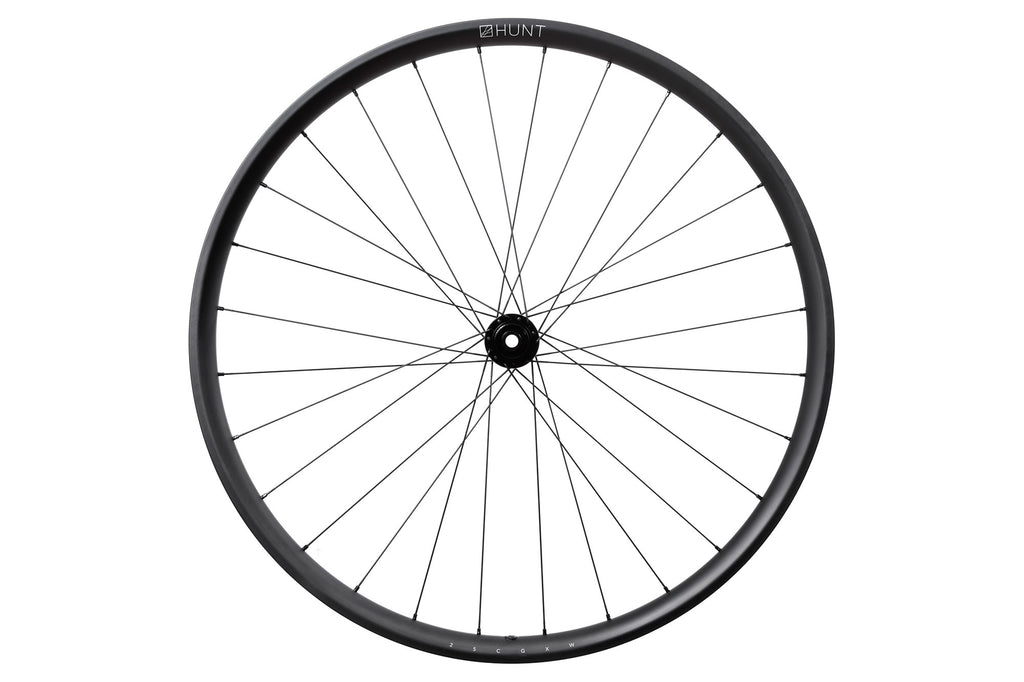

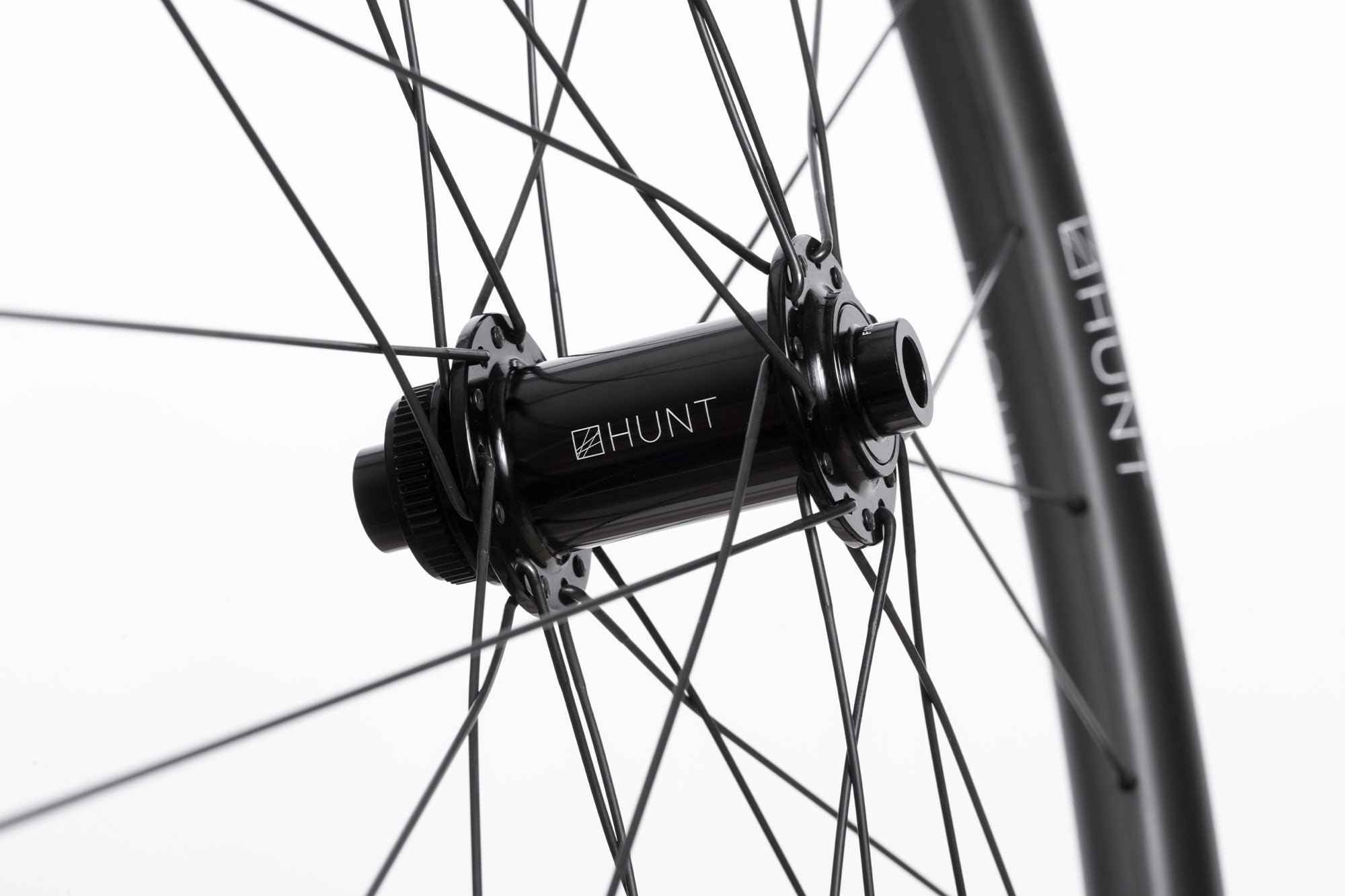

Front Hub
Forged and CNC’d 6061-T6 heat treated aluminium alloy body.  7075-T6 aluminium alloy axles.  Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.  Polished anodized black finish with laser graphics.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Polished anodized black finish with laser graphics.

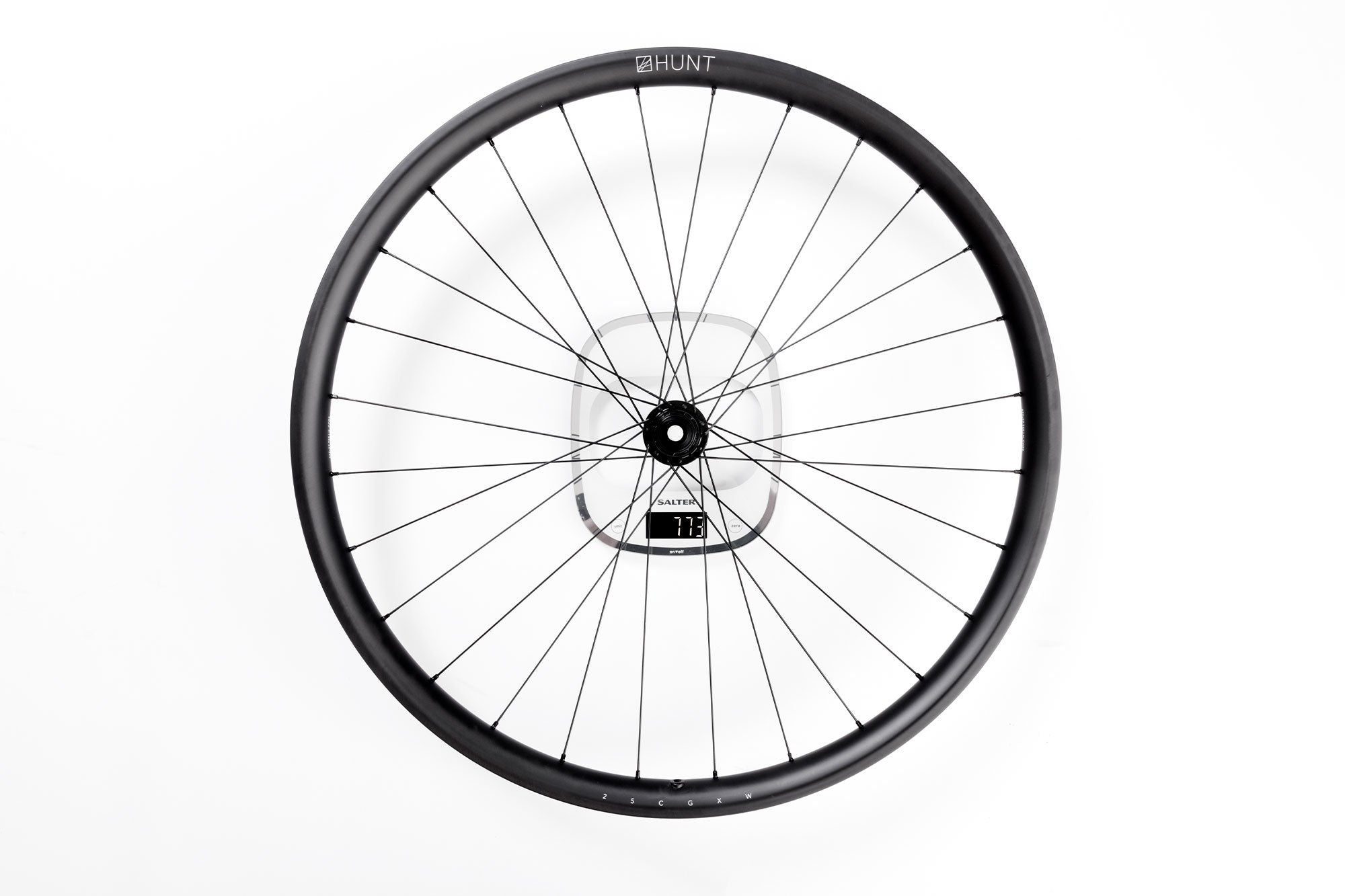

Rear Hub
HUNT H_Ratchet 36T SGL  H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.  All freehub standards accounted for.  Single 36T Ratchet Ring equals 10° engagement.  Forged and CNC’d 6061-T6 heat-treated aluminium alloy body.  7075-T6 aluminium alloy axles.  Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here  Polished anodized black finish with laser graphics.
  • HUNT H_Ratchet 36T SGL
  • H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • All freehub standards accounted for.
  • Single 36T Ratchet Ring equals 10° engagement.
  • Forged and CNC’d 6061-T6 heat-treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Polished anodized black finish with laser graphics.
Bearings
Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.  Sealed cartridge replaceable units.  Dual full-contact seals.
  • Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
  • Sealed cartridge replaceable units.
  • Dual full-contact seals.
Tyres Info
HUNT recommends a 45-60mm tyre for best performance, tyre widths between 35mm and 65mm are also safe to use. Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here. Tubeless-ready for lower weight and rolling resistance. Only use tyres suitable for hookless (TSS) rims. If unsure, please contact the tyre manufacturer. Leading brands, including Schwalbe, Continental and Vittoria, have many tyres suitable for hookless TSS rims.  You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.

HUNT recommends a 45-60mm tyre for best performance, tyre widths between 35mm and 65mm are also safe to use.

Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here. Tubeless-ready for lower weight and rolling resistance. Only use tyres suitable for hookless (TSS) rims. If unsure, please contact the tyre manufacturer. Leading brands, including Schwalbe, Continental and Vittoria, have many tyres suitable for hookless TSS rims.

You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.

Axle Sizes
These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:  Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mm  Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm  *Shimano Microspline and Campagnolo CN3W is only available in 12x142mm  If you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.

These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:

Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mm

Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm

*Shimano Microspline and Campagnolo CN3W is only available in 12x142mm

If you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.

HIGH SPECIFICATION COMPONENTS _

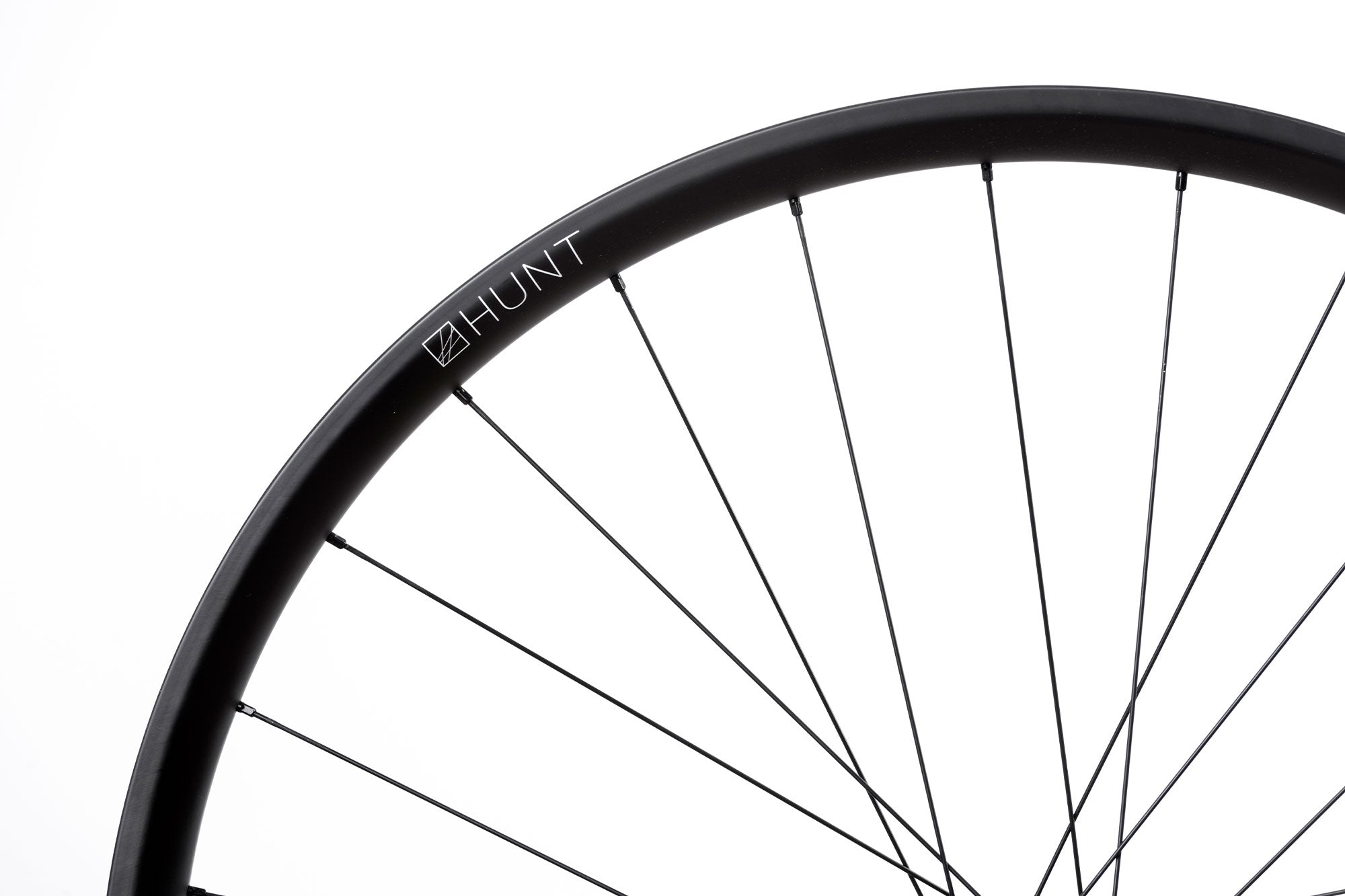

RIMS

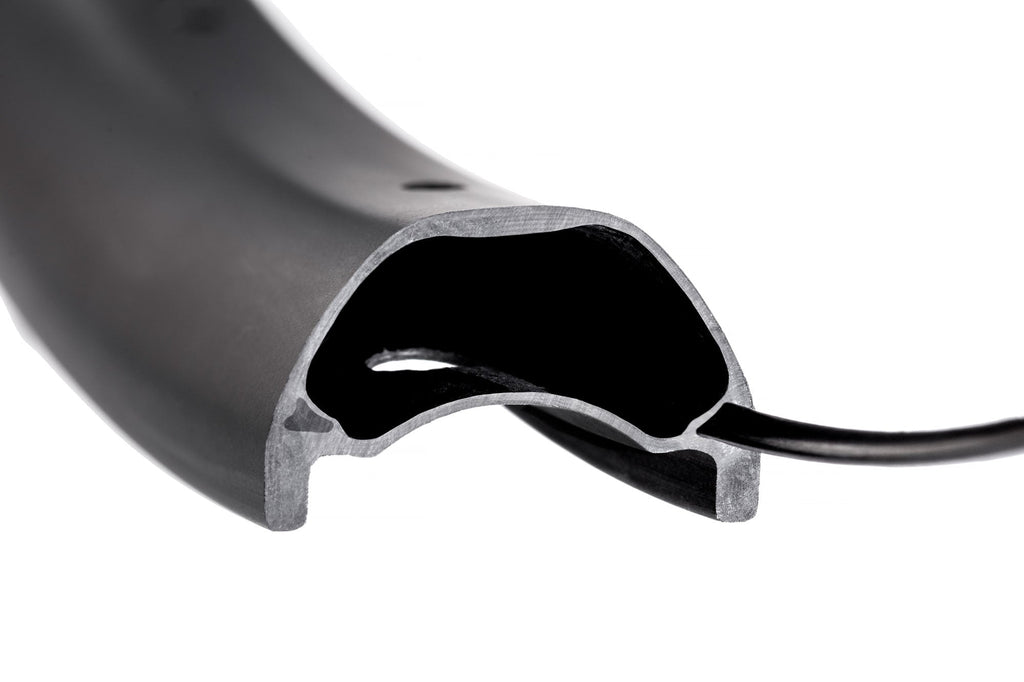

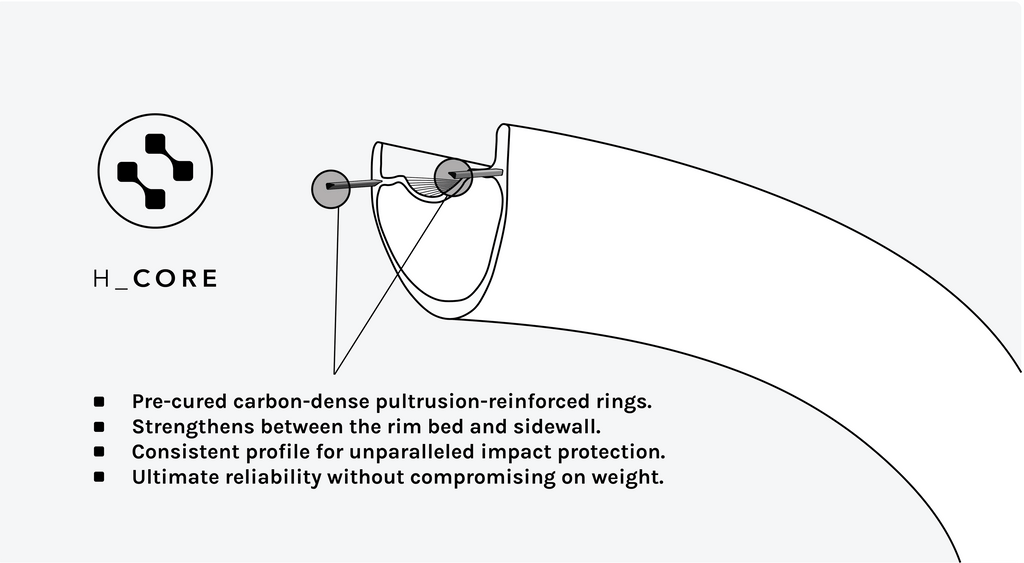

H_Core reinforcement technology increases impact resistance significantly, resulting in the strongest gravel rims on the market. The 27mm-wide internal profile enhances strength and durability, with a reinforced layup and oversized sidewall dimensions to reduce the risk of pinch flats and enhance impact resistance.

The 25 Carbon Gravel X-Wide also features an asymmetric rim profile with compliance and impact resistance top of mind so you can worry less.

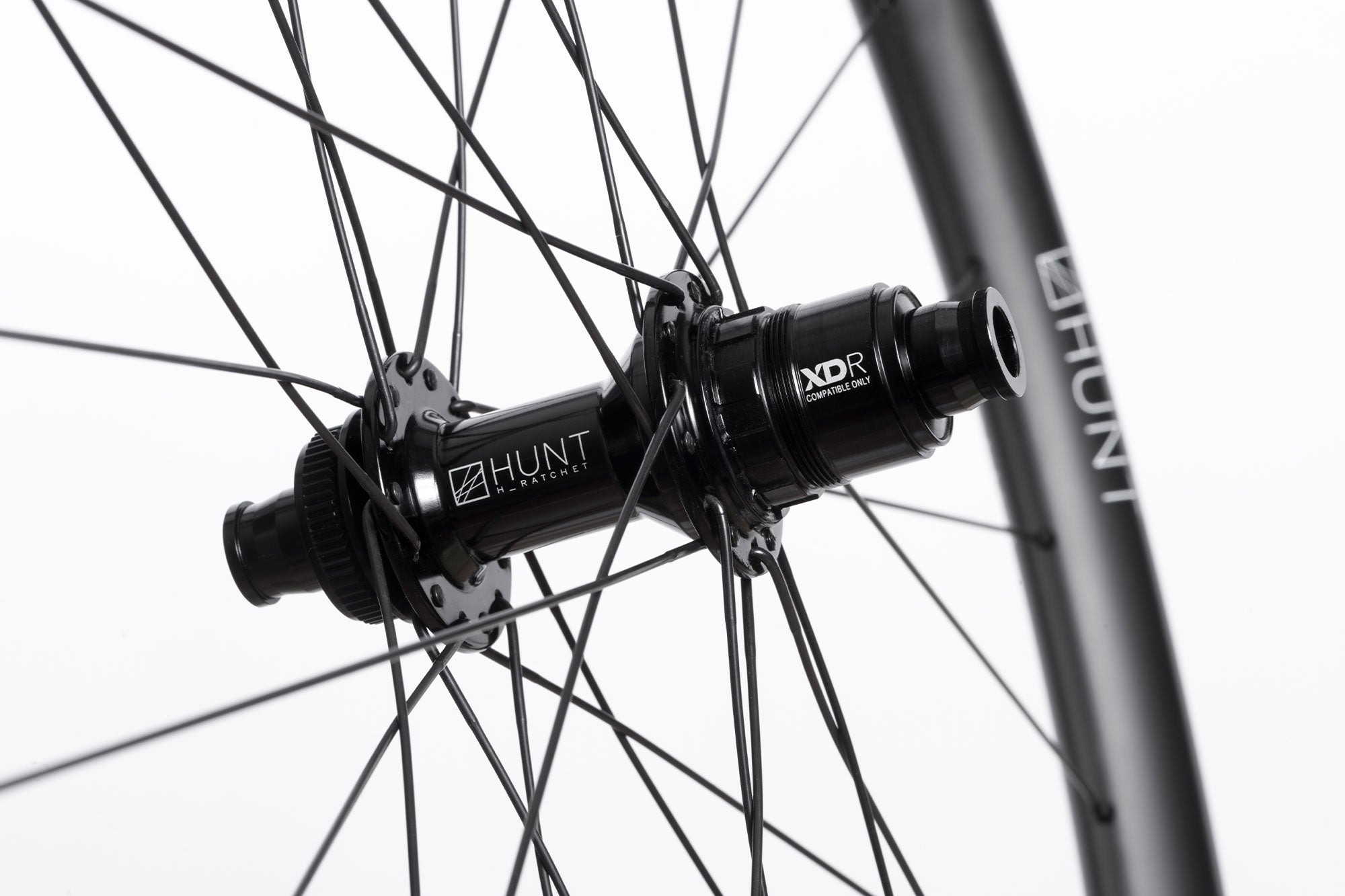

HUBS

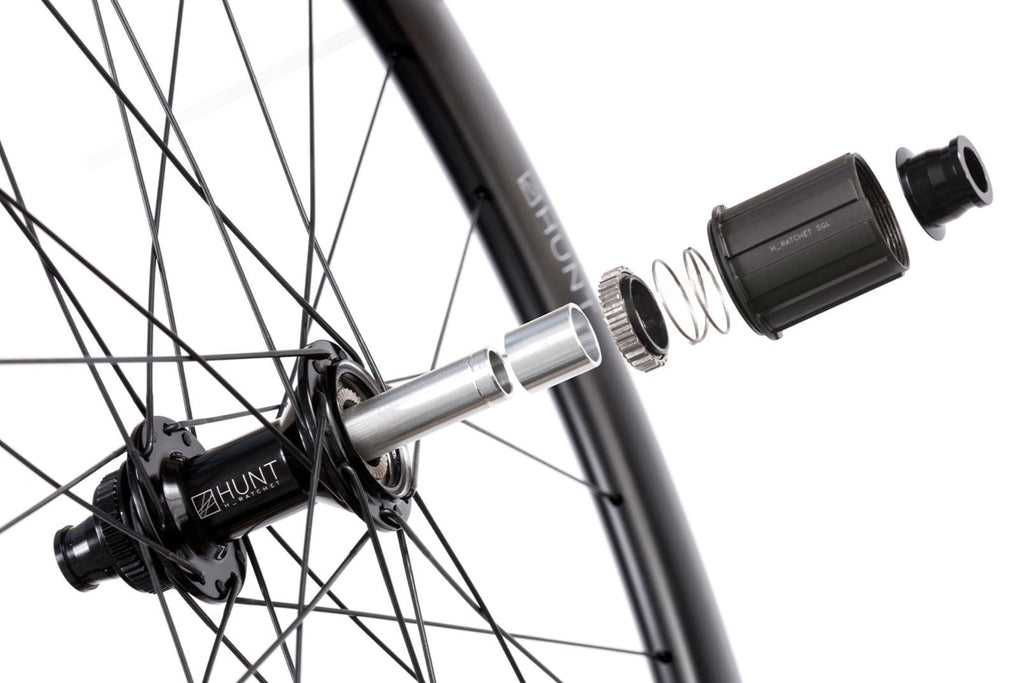

The HUNT H_Ratchet 36T SGL hubset provides a 10-degree engagement angle with improved durability, offering increased engagement surface area while using less shell materials relative to our race-proven pawl-based systems. Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance. Available in Boost and non-Boost spacing.

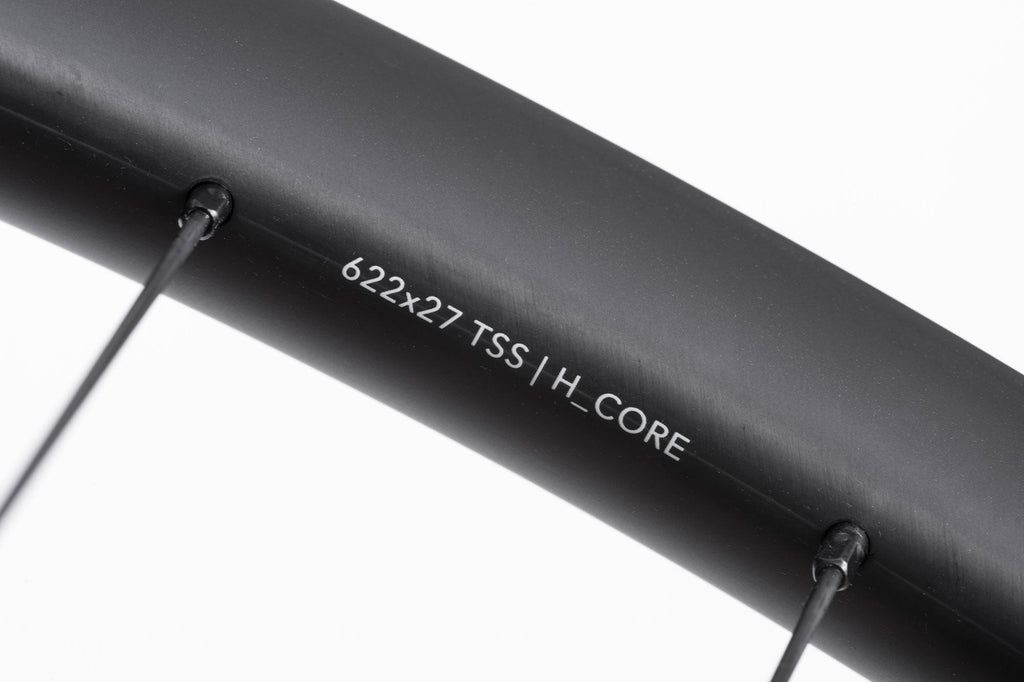

ENHANCED SPOKE HOLE DURABILITY

Engineered with angular spoke patches to reduce stress at the spoke holes and provide accurate nipple alignment for a stronger, more reliable build.

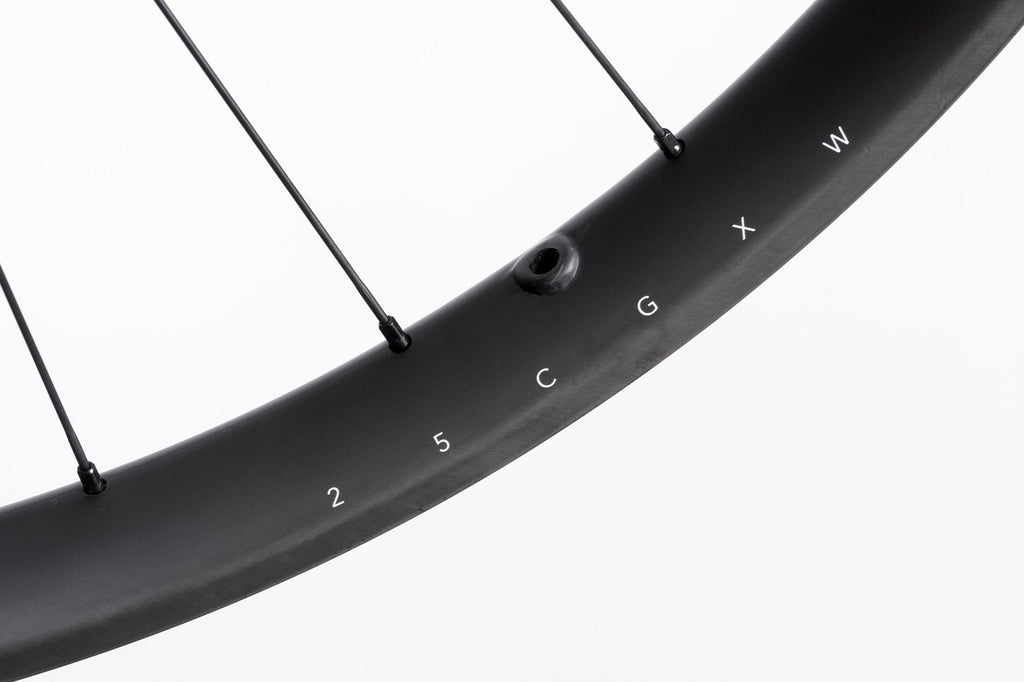

BRASS NIPPLES

Brass nipples are used for their corrosion resistance, proven durability, especially in adverse conditions and help maintain consistent spoke tension, removing the risk of seizing. Every detail is designed with your riding in mind.

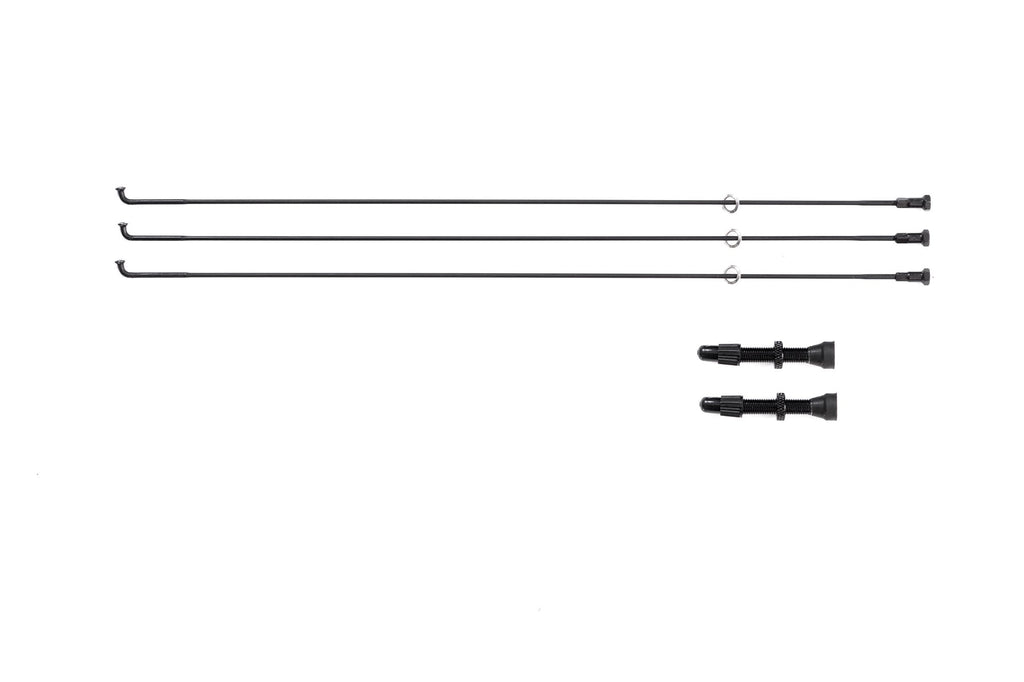

What's in the box _

  • Hunt Black Shield tubeless tape fitted to wheels.
  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
  • Cassette spacer for 8/9/10 speed.
  • 45mm Tubeless Valves.
  • Spare of each spoke plus nipples.
  • Quality control card signed by your wheel builder.

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.
