HUNT 4 Season All-Road Disc | Wheelset
24 Deep | 25 Wide Ext | 20 Wide Int | 1629g
GO AND RIDE WHEREVER YOU WANT. READY FOR GRAVEL, ROAD, AND ANYTHING IN BETWEEN.
24 Deep | 25 Wide Ext | 20 Wide Int | 1629g
The Purpose
You want to ride fast on roads, but often the routes will take us lead to the paths less travelled. The 4 Season All-Road Disc 700c wheelset is for you. Roam, find undiscovered routes, and just have a blast.
With a high spoke count and large double-sealed cartridge bearings, you can enjoy exploring knowing your wheels are up to the task. The 20mm (internal) rim is ideal for 28-32mm tyres, but will work well from 25-38mm tyres (check compatibility with tyre manufacturer), so you can explore, go bike-packing, rip any trails or CX courses you fancy, and do it all with confidence. We’ve invested in high-specification rims, hubs and spokes, so you don’t pay a weight penalty for that extra off-road durability.
The Purpose
You want to ride fast on roads, but often the routes will take us lead to the paths less travelled. The 4 Season All-Road Disc 700c wheelset is for you. Roam, find undiscovered routes, and just have a blast.
With a high spoke count and large double-sealed cartridge bearings, you can enjoy exploring knowing your wheels are up to the task. The 20mm (internal) rim is ideal for 28-32mm tyres, but will work well from 25-38mm tyres (check compatibility with tyre manufacturer), so you can explore, go bike-packing, rip any trails or CX courses you fancy, and do it all with confidence. We’ve invested in high-specification rims, hubs and spokes, so you don’t pay a weight penalty for that extra off-road durability.
Key Features
The Wheelset That Can Take You Anywhere, Any Time
- Rims | 6061-T6 Heat treated. Disc specific. Asymmetric for balanced spoke tensions and a highly-durable wheel build. ETRTO 622x20. H-lock bead-seat for easy and secure tubeless installation.
- Tyres | Tubeless-ready for lower weight, rolling resistance and improved puncture resistance. Also work excellently with clincher tyres and tubes.
- Hubs | HUNT 4 Season Disc J-bend spoke hubs with extra bearing shielding. 10° FastEngage 4-pawl freehub, with H_CERAMIK coating for enhanced durability. SRAM XDR Driver available. Centre-lock disc mount.
- Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/15/9mm, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
- Included | Tubeless tape & valves, spare spokes, axle adapters (please fill in the simple form after checkout to select your required size)
- Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
-
Weight | 1629g
See the full specs here
Please note: If you require a 6-bolt adapter you can purchase separately here.
The Experts' View
Full Specs

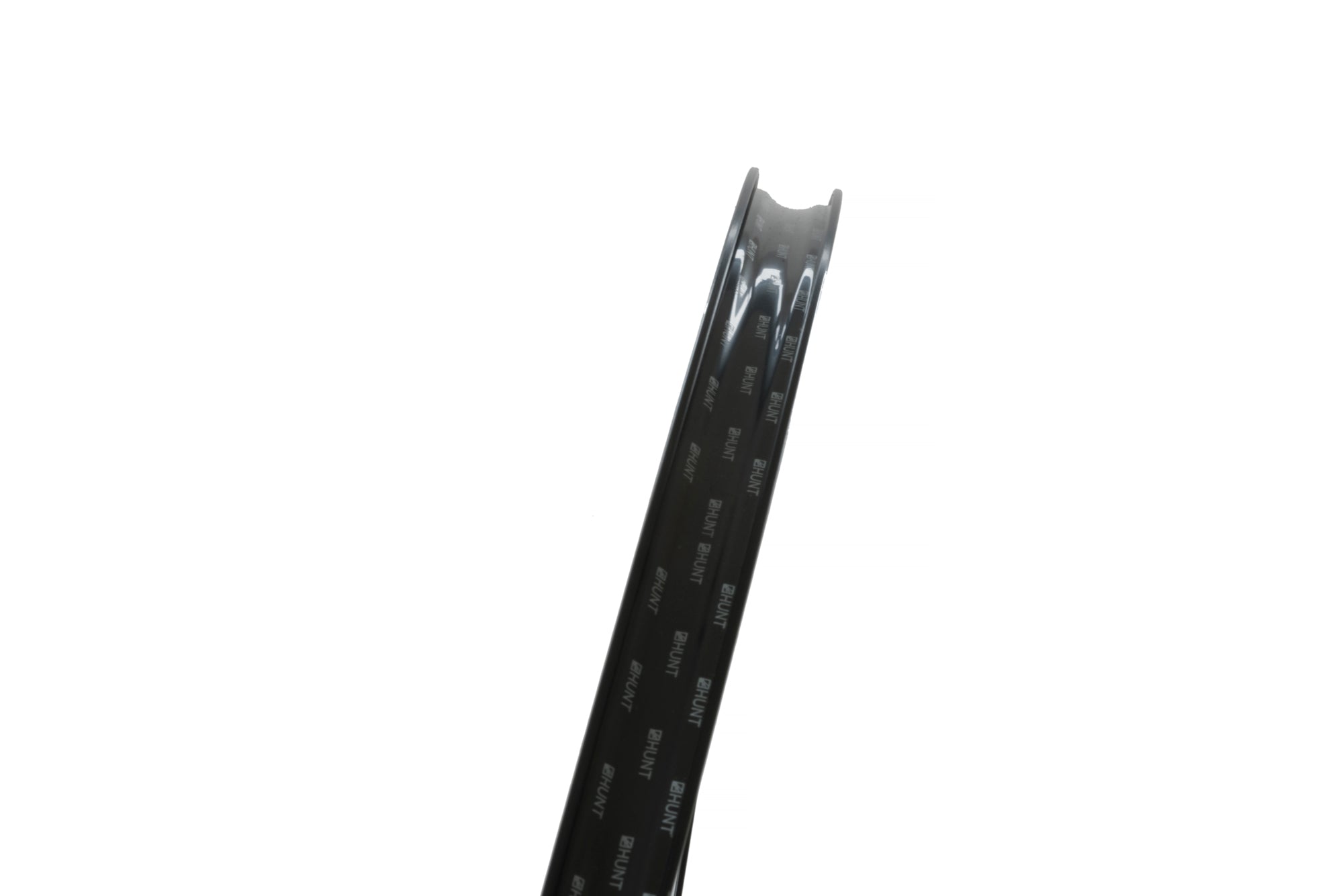

Rims
- Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless-rim tape and valves included.
- H-lock bead-seat up-kicks for easy and secure tubeless installation.
- 6061-T6 heat-treated aluminium alloy.
- Asymmetric to balance spoke tensions.
- Disc-specific tubeless-ready profile.
- 25mm outer and 20mm inner width ideal for 25-50mm tyre widths.
- 24mm depth
- Matt black anodized finish with laser etched graphics for low weight with excellent durability.
Spokes
- J-bend cold drawn
- Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
- Triple butted 2.0-1.8-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement)
- 24(F) & 28(R) spokes laced 2 cross front and rear.
- Black stainless treatment.
Nipples
- Brass for anti-corrosion resistance.
- Square body for external adjustment and hex head for easy internal adjustment/tensioning.
- 12mm length.
- 14 gauge.
- Black anodized finish.
Tyres Info
- Maximum tyre pressure for this rim is 100psi when used with 25-28mm tyres. Maximum tyre pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. 100 psi is more than enough for any rider on road.
- The maximum pressure of your tyre may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tyre
- Suitable for tyres from 23mm up to 50mm wide.
Axle Size
- These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.

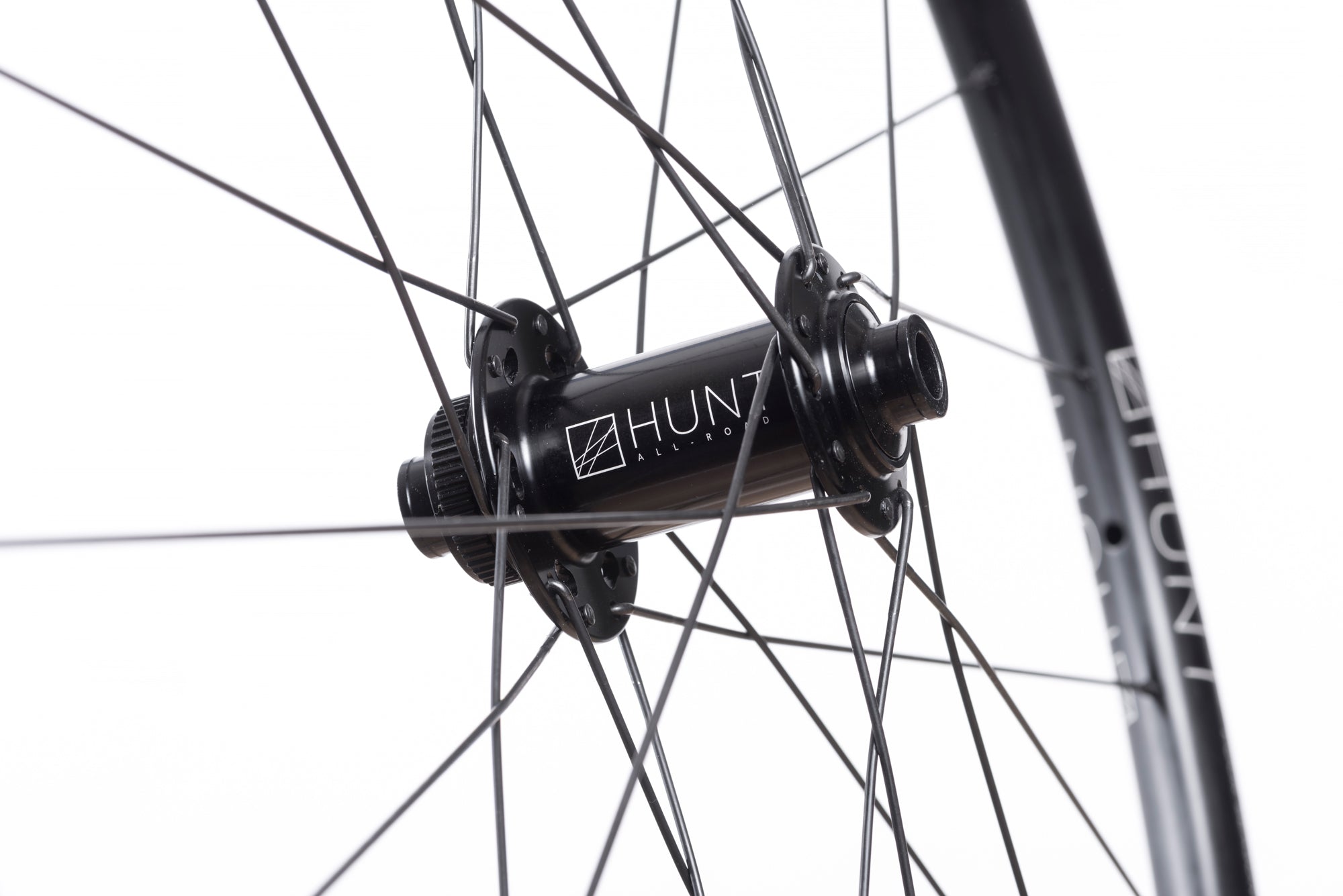

Front Hub
- We fit the axles you need, just complete the simple form shown after checkout:
- All existing road/CX disc front axle standards are available including:
- Quick Release (Quick release skewers included)
- 12mm Bolt Thru
- 15mm Bolt Thru
- 9mm Bolt Thru (uncommon)
- All axle adapters are also available separately.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Polished anodized black finish with laser graphics.
- Centre-lock disc mount.
- Please note: If you require a 6 bolt adaptor you can purchase separately here

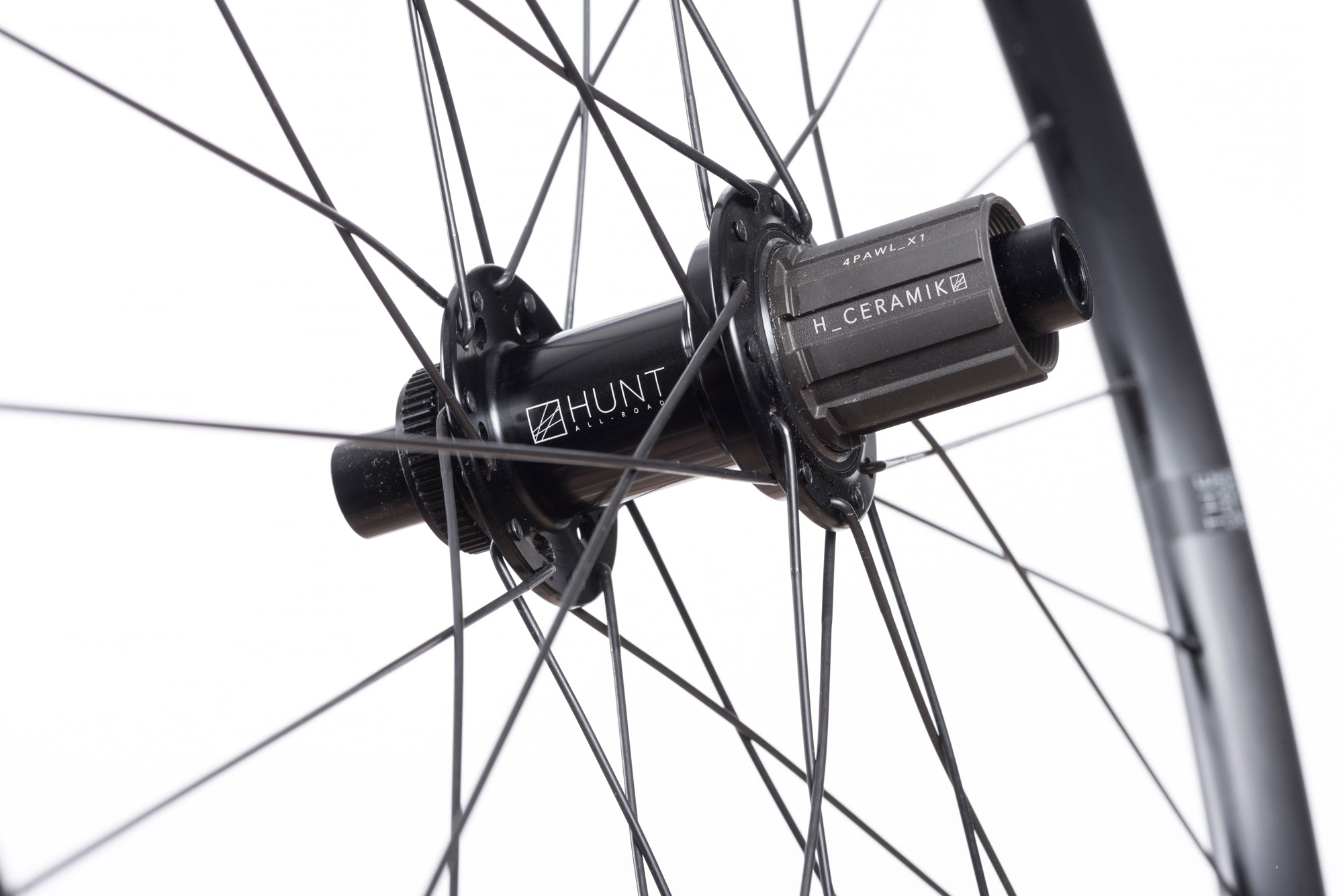

Rear Hub
- We fit the axles you need, just complete the simple form shown after checkout.
- All existing road/CX disc rear axle standards are available including:
- Quick Release (Quick release skewers included)
- 12x142 Bolt Thru
- 12x135 Bolt Thru (uncommon)
- 10x135 Bolt Thru (uncommon)
- All axle adapters are also available separately.
- 7075-T6 heat-treated aluminium alloy freehub body.
- H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- 4 pawl, 10° engagement.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Polished anodized black finish with laser graphics.
- All freehub standards accounted for, including:
- Shimano/SRAM
- Campagnolo
- SRAM XD Driver
- SRAM XDR Driver
- Please note: If you require a 6 bolt adaptor you can purchase separately here
Bearings
- Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
- Sealed cartridge replaceable units.
- Upgraded to low-friction seals to further reduce rolling resistance.
- Incredibly fast rolling
Warranty, HUNT Rolling Road Tests & Weight Limits
A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 130kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 120Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres minimum 25mm at max 100psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.
Reviews
Bike Magazine and Website Experts' Views
|
Designed as a versatile do-it-all wheelset that’s ready for anything"There are very few wheels that can touch the 4Season Gravel Disc when it comes to value and serviceability." |
 |
built to exacting specifications, and has proven to be a very reliable and flexible package that is perfect for gravel cycling."This a simple, no nonsense wheelset with solid and reliable parts...” |
In the Box
Contents
- HUNT Black Shield tubeless tape fitted to wheels.
- The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
- Cassette spacer for 8/9/10 speed
- Tubeless Valves
- Spare of each spoke plus nipples
- Quality control card signed by your wheel builder
GO AND RIDE WHEREVER YOU WANT. READY FOR GRAVEL, ROAD, AND ANYTHING IN BETWEEN.
24 Deep | 25 Wide Ext | 20 Wide Int | 1629g
The Purpose
You want to ride fast on roads, but often the routes will take us lead to the paths less travelled. The 4 Season All-Road Disc 700c wheelset is for you. Roam, find undiscovered routes, and just have a blast.
With a high spoke count and large double-sealed cartridge bearings, you can enjoy exploring knowing your wheels are up to the task. The 20mm (internal) rim is ideal for 28-32mm tyres, but will work well from 25-38mm tyres (check compatibility with tyre manufacturer), so you can explore, go bike-packing, rip any trails or CX courses you fancy, and do it all with confidence. We’ve invested in high-specification rims, hubs and spokes, so you don’t pay a weight penalty for that extra off-road durability.
The Purpose
You want to ride fast on roads, but often the routes will take us lead to the paths less travelled. The 4 Season All-Road Disc 700c wheelset is for you. Roam, find undiscovered routes, and just have a blast.
With a high spoke count and large double-sealed cartridge bearings, you can enjoy exploring knowing your wheels are up to the task. The 20mm (internal) rim is ideal for 28-32mm tyres, but will work well from 25-38mm tyres (check compatibility with tyre manufacturer), so you can explore, go bike-packing, rip any trails or CX courses you fancy, and do it all with confidence. We’ve invested in high-specification rims, hubs and spokes, so you don’t pay a weight penalty for that extra off-road durability.
Key Features
The Wheelset That Can Take You Anywhere, Any Time
- Rims | 6061-T6 Heat treated. Disc specific. Asymmetric for balanced spoke tensions and a highly-durable wheel build. ETRTO 622x20. H-lock bead-seat for easy and secure tubeless installation.
- Tyres | Tubeless-ready for lower weight, rolling resistance and improved puncture resistance. Also work excellently with clincher tyres and tubes.
- Hubs | HUNT 4 Season Disc J-bend spoke hubs with extra bearing shielding. 10° FastEngage 4-pawl freehub, with H_CERAMIK coating for enhanced durability. SRAM XDR Driver available. Centre-lock disc mount.
- Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/15/9mm, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
- Included | Tubeless tape & valves, spare spokes, axle adapters (please fill in the simple form after checkout to select your required size)
- Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
-
Weight | 1629g
See the full specs here
Please note: If you require a 6-bolt adapter you can purchase separately here.
The Experts' View
Full Specs
Rims
- Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless-rim tape and valves included.
- H-lock bead-seat up-kicks for easy and secure tubeless installation.
- 6061-T6 heat-treated aluminium alloy.
- Asymmetric to balance spoke tensions.
- Disc-specific tubeless-ready profile.
- 25mm outer and 20mm inner width ideal for 25-50mm tyre widths.
- 24mm depth
- Matt black anodized finish with laser etched graphics for low weight with excellent durability.
Spokes
- J-bend cold drawn
- Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
- Triple butted 2.0-1.8-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement)
- 24(F) & 28(R) spokes laced 2 cross front and rear.
- Black stainless treatment.
Nipples
- Brass for anti-corrosion resistance.
- Square body for external adjustment and hex head for easy internal adjustment/tensioning.
- 12mm length.
- 14 gauge.
- Black anodized finish.
Tyres Info
- Maximum tyre pressure for this rim is 100psi when used with 25-28mm tyres. Maximum tyre pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. 100 psi is more than enough for any rider on road.
- The maximum pressure of your tyre may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tyre
- Suitable for tyres from 23mm up to 50mm wide.
Axle Size
- These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.
Front Hub
- We fit the axles you need, just complete the simple form shown after checkout:
- All existing road/CX disc front axle standards are available including:
- Quick Release (Quick release skewers included)
- 12mm Bolt Thru
- 15mm Bolt Thru
- 9mm Bolt Thru (uncommon)
- All axle adapters are also available separately.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Polished anodized black finish with laser graphics.
- Centre-lock disc mount.
- Please note: If you require a 6 bolt adaptor you can purchase separately here
Rear Hub
- We fit the axles you need, just complete the simple form shown after checkout.
- All existing road/CX disc rear axle standards are available including:
- Quick Release (Quick release skewers included)
- 12x142 Bolt Thru
- 12x135 Bolt Thru (uncommon)
- 10x135 Bolt Thru (uncommon)
- All axle adapters are also available separately.
- 7075-T6 heat-treated aluminium alloy freehub body.
- H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- 4 pawl, 10° engagement.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Polished anodized black finish with laser graphics.
- All freehub standards accounted for, including:
- Shimano/SRAM
- Campagnolo
- SRAM XD Driver
- SRAM XDR Driver
- Please note: If you require a 6 bolt adaptor you can purchase separately here
Bearings
- Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
- Sealed cartridge replaceable units.
- Upgraded to low-friction seals to further reduce rolling resistance.
- Incredibly fast rolling
Warranty, HUNT Rolling Road Tests & Weight Limits
A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 130kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 120Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres minimum 25mm at max 100psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.
Reviews
Bike Magazine and Website Experts' Views
|
Designed as a versatile do-it-all wheelset that’s ready for anything"There are very few wheels that can touch the 4Season Gravel Disc when it comes to value and serviceability." |
|
built to exacting specifications, and has proven to be a very reliable and flexible package that is perfect for gravel cycling."This a simple, no nonsense wheelset with solid and reliable parts...” |
In the Box
Contents
- HUNT Black Shield tubeless tape fitted to wheels.
- The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
- Cassette spacer for 8/9/10 speed
- Tubeless Valves
- Spare of each spoke plus nipples
- Quality control card signed by your wheel builder
