HUNT 48 Limitless UD Carbon Spoke Disc Wheelset

1511g Depth Width ext Width int size
48 mm 35 mm 22.5 mm 700c

Designed and proven to be the fast wheel up to and uncluding 50mm depth. Patended, ultra-wide LIMITLESS aero technology provides world-beating aerodynamic performance and nerve-calming stability.

UD carbon spokes reduce weight and road vibration while increasing lateral responsiveness by 6%. HUNT Sprint SL-C hubs offer quick 7.5 degree engagement and CeramicSpeed (optional) bearings for low rolling resistance. The result is an exceptionally fast and versatile wheel system.

Tyre size: Aero optimized for 28 to 30mm tyres. Work well with 28mm up to 45mm.

€1,911.75 €2,549.00
25% off
Limited Stock. Available Now.
CeramicSpeed Bearings - Limited Stock (€1,911.75)Items are selected to ship from us in the week stated. Delivery time is 3-6 days*

We will ask for Axle info after checkout.

All import duties, taxes and handling costs are covered by us.

Order ETA 3-6 days*
Our wheels are in high demand, don't miss out. Order now.

*If shown in stock

H_CARE

FREE LIFETIME CRASH REPLACEMENT

To ensure you're not out of pocket should the worst happen. Learn more.

The Purpose _

LA Sweat team rider street-racing on the HUNT 48 Limitless UD Carbon Spoke Wheelset whilst on the attack

The Purpose _

The fastest sub-50mm rims in the world, paired with our UD Carbon Spoke technology. The result is a wheelset offering complete, all-round performance across the board. Superior aerodynamic efficiency and crosswind stability, with added responsiveness and lower system weight.

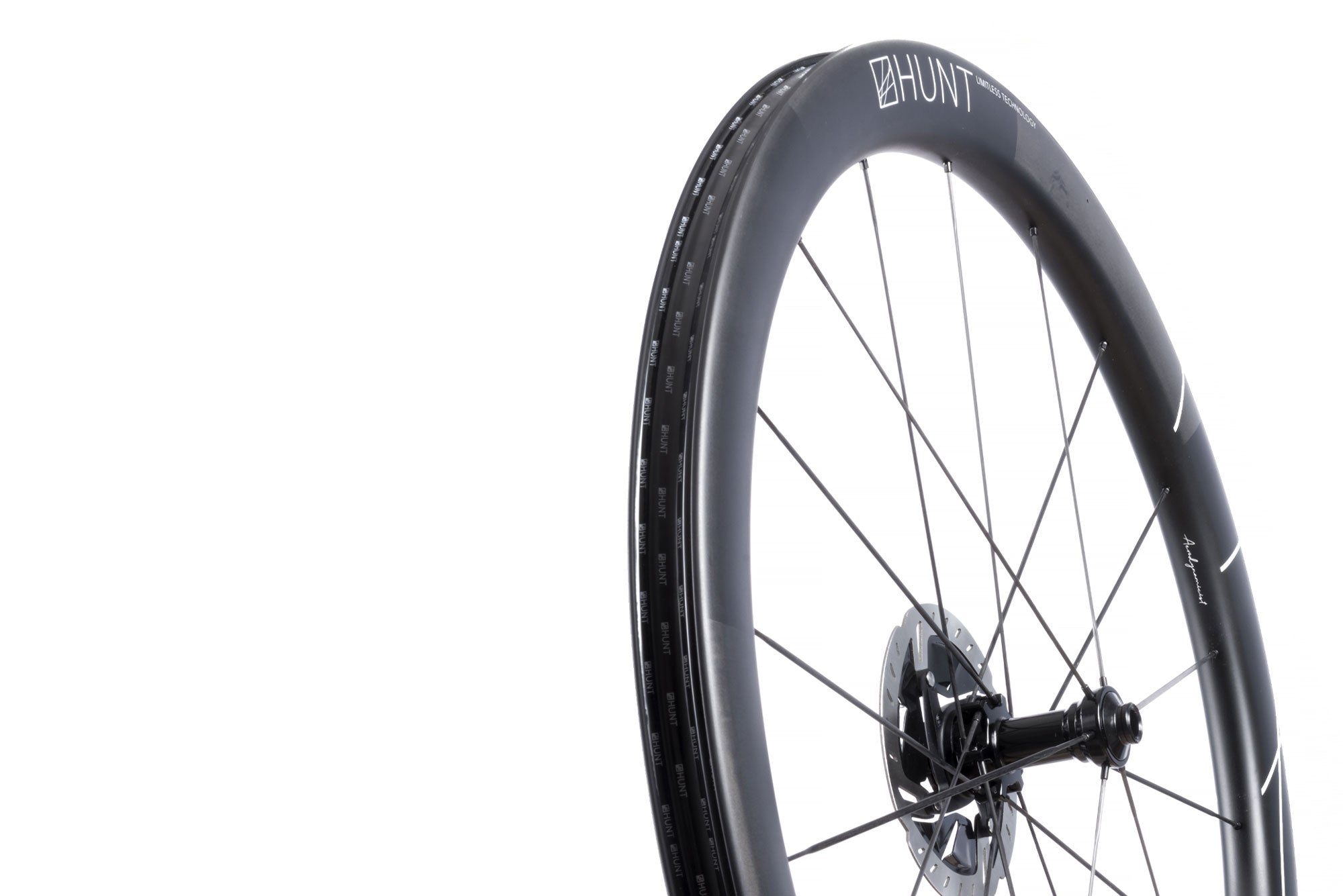

HUNT 48 Limitless UD Carbon Spoke Disc Wheelset

Full Specs _

Rims
Wind tunnel tested, aerodynamically optimised for 25-28c tyresDisc-specific tubeless-ready profileHookedH-lock bead-seat up-kicks for easy and secure tubeless installation35mm outer and 22.5mm inner width48mm depthMatt black base finished with matt white contrasting graphics.
  • Wind tunnel tested, aerodynamically optimised for 25-28c tyres
  • Disc-specific tubeless-ready profile
  • Hooked
  • H-lock bead-seat up-kicks for easy and secure tubeless installation
  • 35mm outer and 22.5mm inner width
  • 48mm depth
  • Matt black base finished with matt white contrasting graphics.
Spokes
TaperLock nipples secure spokes head to the hub2.7g per spoke18 front (1 cross on rotor side, radial on drive side)20 rear (2 cross both sides)No interlacing
  • TaperLock nipples secure spokes head to the hub
  • 2.7g per spoke
  • 18 front (1 cross on rotor side, radial on drive side)
  • 20 rear (2 cross both sides)
  • No interlacing
Nipples
TaperLock nipples secure spoke head to the hub.Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing.Internal nipple for truing.Black anodized finish.
  • TaperLock nipples secure spoke head to the hub.
  • Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing.
  • Internal nipple for truing.
  • Black anodized finish.
Tyres Info
HUNT recommends a 25-28mm tyre for best performance, tyre widths between 25mm and 47mm are also safe to use.  Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here. Tubeless-ready for lower weight and rolling resistance. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • HUNT recommends a 25-28mm tyre for best performance, tyre widths between 25mm and 47mm are also safe to use.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle Sizes
These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mmRear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mmIf you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.

These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:

  • Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm

If you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.

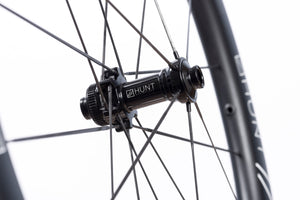

Front Hub
HUNT Sprint SLC straight-pull hubs.Forged and CNC’d 7075-T6 heat treated aluminium alloy body.TaperLock spoke interface.7075-T6 aluminium alloy axles.Polished anodized black finish with laser graphics.Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • HUNT Sprint SLC straight-pull hubs.
  • Forged and CNC’d 7075-T6 heat treated aluminium alloy body.
  • TaperLock spoke interface.
  • 7075-T6 aluminium alloy axles.
  • Polished anodized black finish with laser graphics.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
Rear Hub
HUNT Sprint SLC straight-pull hubs.Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.All freehub standards accounted for.7075-T6 aluminium alloy axles.Forged and CNC’d 7075-T6 heat treated aluminium alloy body.TaperLock spoke interfaceCenter-lock disc mount. If you require a 6 bolt adaptor you can purchase separately herePolished anodized black finish with laser graphics.
  • HUNT Sprint SLC straight-pull hubs.
  • Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
  • All freehub standards accounted for.
  • 7075-T6 aluminium alloy axles.
  • Forged and CNC’d 7075-T6 heat treated aluminium alloy body.
  • TaperLock spoke interface
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Polished anodized black finish with laser graphics.
Bearings
Industry leading CeramicSpeed hybrid ceramic bearings3 to 5 times longer lasting than other ceramic bearings on the market and 10 times more than standard steel bearings.CeramicSpeed bearing balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. 15% harder, take 99% higher loads and are more than 100% smoother than other ceramic balls typically seen in the market. The smoothness and the hardness of the CeramicSpeed Balls are unique.4 year warranty (When registered with CeramicSpeed)
  • Industry leading CeramicSpeed hybrid ceramic bearings
  • 3 to 5 times longer lasting than other ceramic bearings on the market and 10 times more than standard steel bearings.
  • CeramicSpeed bearing balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. 15% harder, take 99% higher loads and are more than 100% smoother than other ceramic balls typically seen in the market. The smoothness and the hardness of the CeramicSpeed Balls are unique.
  • 4 year warranty (When registered with CeramicSpeed)

HIGH SPECIFICATION COMPONENTS _

Patented Limitless Technology

In order to create the most aerodynamic & stable shape for the tyre, a rim bed of 21mm is needed. With the tyre profile this creates, the ideal shape of the rim curves out to an external width of 34mm. To overcome the weight penalty associated with this, we use a (non-structural) low density expanding polymer insert, inside a channel carved out during the production process.

Patented Limitless Technology

This is bonded to the carbon during the curing process, resulting in a uniform and strong bond. The density of carbon is 1.6g per cubic centimetre, whereas the polymer insert weighs just 0.7g per cubic centimetre, resulting in a (rotational) mass loss of just over 50g per rim. This patented technology enables us to consider the limits of material properties, and smash right past them.

UD Carbon Spokes

TaperLock UD carbon spokes offer up to a 30% increase in lateral responsiveness compared to steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke. Owing to the TaperLock technology, these spokes can be trued using a spoke key from inside the rim bed.

SLC Hubs

Our SLC hubs are developed specifically for UD carbon spokes, and boast a high strength-to-weight ratio owing to their forged 7075 construction.

CeramicSpeed Bearings

You can spec your Limitless wheels with CeramicSpeed's industry-leading hybrid ceramic bearings. All CeramicSpeed ball bearings are Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. The quality of the balls determines the performance and lifetime of a bearing. The CeramicSpeed Balls feature unparalleled impact strength, smoothness, roundness and brittleness.

Tyre Width Optimisation

Our 48 Limitless road rims are optimised for a 28mm Schwalbe Pro One. Patented LIMITLESS technology allows for a 22.5mm rim bed and a huge 34.5mm external rim width, meaning the rim sits far wider than the tyre for aerodynamic efficiency.

What's in the box _

  • HUNT Black Shield tubeless tape fitted to wheels.
  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
  • Cassette spacer for 8/9/10 speed
  • 60mm Tubeless Valves
  • Quality control card signed by your wheel builder

<h1>In the Box</h1><ul><li>HUNT Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Tubeless Valves</li><li>Quality control card signed by your wheel builder</li></ul>

WARRANTY_

These wheels come with H_CARE (Free Lifetime Crash Replacement) for the first owners. Read all about it here.

A full 3 years (4 years on CeramicSpeed bearings*) from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 125kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 105Kgs then an experienced bike mechanic should check the wheel regularly.
