HUNT Trail Wide MTB 27.5 Wheelset

1761g Width int size
30 mm 27.5"

Lightweight, comfortable and durable. Our go-to wheelset for trail riding. Award-winning alloy trail bike wheelset manufactured from 6069 T6 aluminium, work-hardened shot-peened finish, hand laced to HUNT RapidEngage 5-degree hubs.

Tyre size: Optimized for 2.35" to 2.6" tyres; work well with 2.25" up to 2.8" tyres.

Also available in Mullet and 29".

PINKBIKE REVIEW

"The latest version of Hunt's Trail Wide wheels do exactly what they're supposed to - they're decent wheels at a good price that are gimmick-free."

€441.75 €589.00
25% off

€99 Deposit option available

Secure your order with a €99 deposit and enjoy the convenience of deferred payment.

Pre-Order Now. Shipping:
27.5" / Boost - Apr Wk 3
27.5" / Non-Boost - Limited StockItems are selected to ship from us in the week stated. Delivery time is 3-6 days*

We will ask for axle info after checkout.

All import duties, taxes and handling costs are covered by us.

Order ETA 3-6 days*
Our wheels are in high demand, don't miss out. Order now.

*If shown in stock

The Purpose _

The Purpose _

After almost three years of unwavering service on the toughest trails, with numerous awards and recognitions along the way, the restless design team at HUNT saw an opportunity to update the Trail Wide wheelset to meet the evolving demands of today’s riders.

Starting with what we learnt around profile optimisation from the burlier Enduro Wide V2 project, we set out to improve upon its lighter sibling, not an easy task with an Editor’s Choice-winning wheelset. Combining the all-new 30mm internal rim profile, with new hubs and spoke configurations, results in a wheel that keeps the outward appearance of it's predecessor yet provide 20% more impact resistance.

Designed as the answer to your trail centre weekends, back country epics or days spent smashing through your local woods - a wheelset that can do it all and leave you with a big grin.

Full Specs _

Rims
30mm internal width ideal for 2.4"-2.6" tyre widths, but also work very well with 2.25"-2.9".6069-T6 heat-treated aluminium alloy (+69% tensile strength vs 6061-T6).Tubeless-ready – designed to work best with tubeless tyres. Tubeless-rim tape and valves included.H-lock bead-seat up-kicks for easy and secure tubeless installation.Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.
  • 30mm internal width ideal for 2.4"-2.6" tyre widths, but also work very well with 2.25"-2.9".
  • 6069-T6 heat-treated aluminium alloy (+69% tensile strength vs 6061-T6).
  • Tubeless-ready – designed to work best with tubeless tyres. Tubeless-rim tape and valves included.
  • H-lock bead-seat up-kicks for easy and secure tubeless installation.
  • Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.
Spokes
J-bend cold drawn.28F/28R spoke count, 3 cross.Pillar Spokes made from Sandvik T302 (18/10) stainless steel.Triple butted 2.0-1.8-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).Black stainless treatment.
  • J-bend cold drawn.
  • 28F/28R spoke count, 3 cross.
  • Pillar Spokes made from Sandvik T302 (18/10) stainless steel.
  • Triple butted 2.0-1.8-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
  • Black stainless treatment.
Nipples
Hard-anodized alloy for weight reduction and strength.Square body for external adjustment and hex head for easy internal adjustment/tensioning. Long 14mm thread for durability.14 gauge.Black finish
  • Hard-anodized alloy for weight reduction and strength.
  • Square body for external adjustment and hex head for easy internal adjustment/tensioning.
  • Long 14mm thread for durability.
  • 14 gauge.
  • Black finish
Front Hub
Forged and CNC’d 6061-T6 heat treated aluminium alloy Hub body7075-T6 aluminium alloy axles.Oversized 7075-T6 aluminium alloy axles.110x15mm. Rock Shox Torque Caps for Boost and QR options available - just add a comment in the notes section on the cart page.Polished anodized black finish with laser graphics.6 bolt disc mount/center lock option available.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy Hub body
  • 7075-T6 aluminium alloy axles.
  • Oversized 7075-T6 aluminium alloy axles.
  • 110x15mm. Rock Shox Torque Caps for Boost and QR options available - just add a comment in the notes section on the cart page.
  • Polished anodized black finish with laser graphics.
  • 6 bolt disc mount/center lock option available.
Rear Hub
Extruded and CNC machined 7075-T6 heat-treated aluminium alloy hub body.148x12mm, 142x12mm spacing or 157x12mm (29 only).H_CERAMIK freehub body reinforcement coating (Shimano/Sram HG body) provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.Boost QR skewers NOT supplied.3x2 pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5 degrees9/10/11 speed Shimano/SRAM, Shimano Microspline compatible freehubs and SRAM XD Driver version available.Oversized 7075-T6 heat treated aluminium axles.Polished anodized black finish with laser graphics.6 bolt disc mount/centre-lock option available
  • Extruded and CNC machined 7075-T6 heat-treated aluminium alloy hub body.
  • 148x12mm, 142x12mm spacing or 157x12mm (29 only).
  • H_CERAMIK freehub body reinforcement coating (Shimano/Sram HG body) provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • Boost QR skewers NOT supplied.
  • 3x2 pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5 degrees
  • 9/10/11 speed Shimano/SRAM, Shimano Microspline compatible freehubs and SRAM XD Driver version available.
  • Oversized 7075-T6 heat treated aluminium axles.
  • Polished anodized black finish with laser graphics.
  • 6 bolt disc mount/centre-lock option available
Bearings
Precision sealed cartridge replaceable units.Large diameter ball bearings for extra durability.Dual full-contact rubber seals.
  • Precision sealed cartridge replaceable units.
  • Large diameter ball bearings for extra durability.
  • Dual full-contact rubber seals.
Tyres Info
HUNT recommends a 2.4"-2.6" tyre for best performance, tyre widths between 1.9" and 2.8" are also safe to use.  Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here. Tubeless-ready for lower weight and rolling resistance. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • HUNT recommends a 2.4"-2.6" tyre for best performance, tyre widths between 1.9" and 2.8" are also safe to use.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle Sizes
Boost - 148x12mm or Super-Boost 157x12mm (Rear) with 110x15mm (Front). Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.QR adapters available - just complete the simple form after checkout. (Not compatible with Microspline)
  • Boost - 148x12mm or Super-Boost 157x12mm (Rear) with 110x15mm (Front). Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
  • QR adapters available - just complete the simple form after checkout. (Not compatible with Microspline)

HIGH SPECIFICATION COMPONENTS _

Rims

The TrailWide rim includes details that are high on the durability factor to make sure you finish every ride with a big grin. Designed for 2.3"-2.5" tyres, the 30mm internal rim provides support to the tyre when you drop into in a root strewn shoot or you're throttling down a high-speed section and folding a tyre is the last thing you need to happen!

Rim Profile

Like all of our wheels, the Hunt MTB line-up is designed to be used as a tubeless system. Featuring a H-Lock rim bead with 'up-kicks' to the shoulders of the rim bed secures your tyre when seated. This prevents side-to-side movement reducing the chance of burping your tyre. It creates a great rim-well seal for first installation and easy sealing of tubeless tyres. Still haven't made the switch? All our wheels are tube compatible as well.

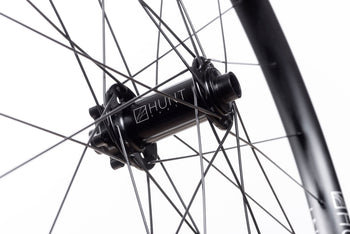

Front Hub

Suited to match the needs of the modern trail bike rider. Featuring durable bearings and 7075-T6 series alloy axles to increase stiffness. These hubs have been selected based on their ability to perform on the most aggressive trails.

Rear Hub

We create wheels to match the needs of riders who want the most from their wheels. The Trail Wide hubs have been chosen to increase stiffness, bearing durability and overall strength of your wheelset. On the rear, the RapidEngage MTB hubs with a fast 5 degree engagement, means you will be able to clear those janky tech climbs with ease.

Spokes

We have chosen top of the line, triple butted Pillar Spokes with increased reinforcement at the spoke head. Not only are these spokes extremely lightweight, they are also able to provide a greater degree of elasticity when put under increased stress. The Pillar Spoke Reinforcement (PSR) puts more material at the spoke head, just before the J-Bend to prevent failure in this stress area.

Weight

Mountain bikers aren't concerned about weight, right? Nope! Whether you're doing a back-country epic or pedalling between stages, we have paid attention to weight to suit the type of riding they will be subjected too. For example, using the highest quality Pillar triple butted spokes with PSR (Pillar Spoke Re-enforcement) has allowed us to not only create a stronger wheel with a higher spoke count, but one which does not add a weight penalty.

What's in the box _

  • Black Shield PET high tensile strength tubeless tape fitted to wheels.
  • Freehub fitted
  • 45mm Tubeless Valves
  • Spare of each spoke plus nipples
  • Quality control card signed by your wheel builder

<h1>In the Box</h1><ul><li>Black Shield PET high tensile strength tubeless tape fitted to wheels.</li><li>Freehub fitted</li><li>Tubeless Valves</li><li>Spare of each spoke plus nipples</li><li>Quality control card signed by your wheel builder</li></ul>

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. Max system weight 135kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 125Kgs then an experienced bike mechanic should check the wheel regularly.
